RP TNC Plug to RP TNC Jack, 200 series cable, 3m T60T95-200-3000
Part Number: T60T95-200-3000 , Connector 1: RP TNC Plug (Female pin)
Connector 2: RP TNC Jack (Male pin)
Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz
Length: 3m

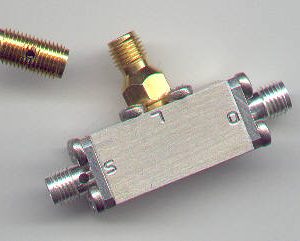

SMACAL, SMA Cal Calibration Kit
Part Number: SMACAL , Low cost SMA Cal Kits for educational and pre-final test use only. Not meant as an absolute standard, but work well up to at least 6 Ghz. Other types on request.
Coaxial Cable, RG142, 30m roll, Unterminated, RG142U-30
Coaxial Cable, RG142, 30m Roll, Unterminated,
PART NUMBER:RG142U-30
Directional Coupler, N Jack, 20dB, 700MHz to 2700MHz, RFS-0727-20
Directional Coupler, N Jack, 20dB, 700MHz to 2700MHz
Part Number: RFS-0727-20
RFShopUK– Other Directional Couplers
RFDenda.com– Directional Couplers
Directional Coupler Specifications and Plots
Technical Specifications: (800-2700Mhz Directional Coupler but work well down to 600 MHz)
Model: RFS-0827-20
Coupling(dB): 20 ±1.1
Frequency(MHz): 800-2700 (600 -2700)
Insertion Loss(Db): 0.2dB (This includes 0.1dB loss due to coupling)
Isolation(dB): ≥20
VSWR: ≤1.25:1
Power Rating(w): 200
Impedance (ohm): 50
Temperature(deg C): -35 ~ +125
Connector: N (fem)
Colour: Grey
Size: 156*63*16.5

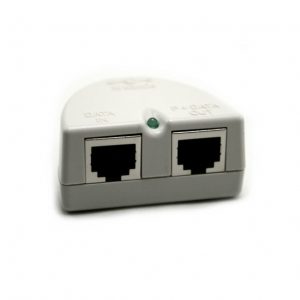

POE (Power Over Ethernet), POE Injector, 12-48V, POE1A5
Part Number: POE1A5
POE (Power Over Ethernet), POE Injector, 12-48V, POE1A5
JyeBao Solderless N Jack (Female pin) suit LMR400 (N81EZ-L400) N81EZ-L400
Part Number: N81EZ-L400
N Jack (Female Pin), Crimp, LMR400, N81EZ-L400
EZ in part number indicates “easy fit”. It is important that the instructions on the data sheet are followed carefully. Particularly the inner wire has to be deburred on the cut to prevent damage during assembly.
NOTE: These connectors only work with solid core LMR400. A better choice for a multistrand 400 cable is N8100-L400 (for a soldered inner connection) or N8100-0213 (for a soldered or crimped inner connection)Â

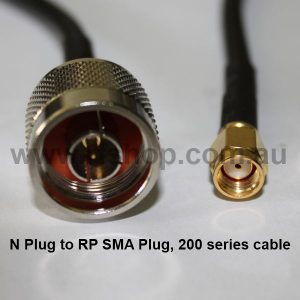

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 0.35m A60N30-200-350
Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 0.35m A60N30-200-350
Part Number: A60N30-200-350 (Previously N30A60-200-350)
Connector 1: RP SMA Plug (Female Pin)
Connector 2: N Plug (Male Pin)
Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 350mm
Connector, HN Plug (Conventional Male), RG58, HN3200-0058
Part Number: HN3200-0058
Connector, HN Plug (Conventional Male), RG58, HN3200-0058
Clamp
Also Fits Cable: RG142, RG400, JBY195
-£39.87
Grid Antenna 5.8 GHz 27 dBi (GA-5800-27)
Engineered for spread-spectrum applications, this antenna uses precision feed-to-reflector geometry to maintain the modelled pattern and impedance. It delivers high gain and long working distance in a lightweight, compact form with good wind resistance.
