10-32 Microdot Plug RF Connector for RG316 / RG174 – Crimp
10-32 Microdot compatible coaxial connector plug with crimp termination. Fits RG316, RG188, RG174, and RG179 cables. Ideal for accelerometer and vibration sensor connections.
10-32 Microdot Jack RF Connector – Bulkhead Solder 50 Ohm
Coaxial connector 10-32 Microdot jack bulkhead o-ring solder spill for panel mount applications. This sealed feedthrough features solder bucket termination for secure cable attachment. Suitable for accelerometers, vibration sensors, and instrumentation enclosures. Compatible with standard 10-32 UNF mating plugs.
N-Type Plug RF Connector for RG213 / LMR400 – Crimp
Connector, N, Plug, RG213,
Part Number: CH-NP-213,
Coaxial Connector,
N Type
Plug (Conventional Male),
RG213 also fits, RG393 and LMR400 Ultra Flex (Multi Strand Core type),
Crimp,
10-32 Microdot Jack RF Connector for RG316 – Crimp
Coaxial connector 10-32 Microdot jack for RG316 cable with crimp termination. Also known as 10-32 UNF, M5, L5, or Series S-50, this inline female connector is used to fabricate accelerometer cables, vibration sensor extensions, and NDT probe leads. Compatible with RG316, RG188, RG174, and RG179 coaxial cables (approx. 3.9mm cable ID). The jack mates with 10-32 Microdot plugs found on accelerometers, IEPE/ICP transducers, ultrasonic flaw detectors, and acoustic sensors. 50Ω impedance.
10-32 Microdot Plug RF Connector for RG178 – Crimp
Coaxial connector 10-32 Microdot plug RG178 crimp for building custom sensor cables. This male connector features crimp termination for secure attachment to RG178 and RG196 coaxial cable. Commonly used with accelerometers, vibration sensors, and instrumentation equipment. Assembly instructions included.
SMA Plug RF Connector for RG58 / 200 Series – Crimp
Connector, SMA Plug, (Conventional Male), Crimp, for LMR195, LMR200, RG58
Part Number: CH-AP-200
RP-TNC Plug RF Connector for RG58 – Crimp
Connector, TNC Plug, Reverse Polarity, RG58, Crimp
Part Number: CH-RTP-58
Coaxial Connector
TNC
Plug Reverse Polarity (Female Pin)
RG58, 195 Series, 200 Series
Crimp
10-32 Microdot Jack RF Connector – PCB End Launch
Coaxial connector 10-32 Microdot jack PCB mount with end launch configuration. Features female centre contact with o-ring seal for reliable connections in accelerometer, vibration sensor, and instrumentation applications. Compatible with standard 10-32 UNF mating plugs.
SMA Plug RF Connector for 0.141″ Semi-Rigid – Solder
Part Number: SMA3300-0141
SMA Connector Plug (Conventional Male), Solder, RG402, 0141, semi rigid, SMA3300-0141
SMA Jack RF Connector for RG316 / 174 – Crimp 50 Ohm
Connector, SMA, Jack, RG316,
Part Number: CH-AJ-316,
Coaxial Connector,
SMA,
Jack (Conventional Female/Socket),
RG316, 100 Series, RG174, RG188,
Crimp,
MCX Plug RF Connector for RG316 – Right Angle Crimp
Coaxial Connector, MCX Plug, RG316, Right Angle
Part Number: CH-MCXP-316-RA
Coaxial Connector
MCX
Plug (Conventional Male)
RG316
Right Angle
Crimp
SMA Quick-Fit Plug to SMA Jack RF Adapter 50 Ohm
Adaptor, SMA Quick-Fit (Snap-on / Push Fit ) Plug to SMA Jack, (Conventional Male to Female), AD-AQ3A8
Part Number: AD-AQ3A8
DATASHEET AD-AQ3A8
See also ADS-AQ3A8
TNC Plug RF Connector for RG58 – Crimp
Connector, TNC, Plug, RG58
Part Number: CH-TP-58
TNC
Plug (Conventional Male)
RG58, 200 Series, 195 Series cable
Crimp
RFShopUK- Other TNC Connectors
10-32 Microdot Plug RF Connector for RG316 – Right Angle Crimp
Coaxial Connector, 10-32, Plug, Right Angle, RG316,
Part Number: 10-32Plug-316-RA
- 10-32 (Microdot Compatible),
- Plug (Conventional Male),
- Right Angle,
- RG316, RG174
- Crimp
HRG58 High-Voltage RF Coaxial Cable – Per Metre 50 Ohm (RG58 Fit)
Coaxial Cable, Dielectric High Voltage, Per Metre,
PART NUMBER: HRG58-20-2-PM
Cable priced Per Metre,
can replace RG58 cable for High Voltage Applications,
Standard RG58 Connectors fit this cable,
RFShopUK-HR58/RG58 Compatible Products
MANUFACTURER: Hivolt.de
Country of Origin: Germany
N-Type Plug RF Connector for LMR600 – Crimp
Coaxial Connector, N, Plug, LMR600, Crimp
Part Number: CH-NP-600
- N Type
- Plug (Conventional Male)
- LMR600 Cable
- Crimp
SHV Plug RF Connector for RG58 50 Ohm – Crimp
SHV plug connector with crimp termination for RG58, JBY195 and LMR195 coaxial cable. 50Ω impedance, 3500V RMS working voltage (5000V RMS withstanding). Gold-plated phosphor bronze centre contact, PTFE insulator. MIL-STD-348B interface. Also suits RG223 with ferrule FERRULE-CH-F-0223.
Dust Cap for BNC and TNC Jack Connectors – Plastic
Plastic Cap for BNC and TNC female Connectors
SMA Plug RF Connector for RG316 / RG174 – Crimp
Coaxial Connector, SMA, Plug, RG316
Part Number: CH-AP-316
- SMA
- Plug (Conventional Male)
- RG316, RG174
- Crimp
N Plug to RP-TNC Jack RF Adapter 50 Ohm
Adapter, N Plug to TNC Jack RP,
Part Number: CH-NP-RTJ,
Coaxial Adapter,
- N Type, Plug (Conventional Male),
- N Type, Jack Reverse Polarity (Male Inner Pin),
N-Type Plug RF Connector 50 Ohm for RG58 / LMR195 – Crimp
Connector, N Plug (Conventional Male), RG58, LMR195, (RG223 needs additional Ferrule-0223)
Part Number: N3100B-0058
RP-TNC Plug RF Connector for LMR240 – Crimp
Part Number: CH-RTP-240
TNC RP-Plug, (Reverse Polarity Male-Female Pin), Crimp, LMR240, CH-RTP-240
SHV Plug RF Connector for RG59 – Right Angle Clamp
Connector, SHV Plug, RG59, Clamp, Right Angle,
Part Number: SHV3200-9059,
Coaxial Connector,
SHV (Safe High Voltage),
Plug (Conventional Male),
RG59,
Clamp,
Right Angle,

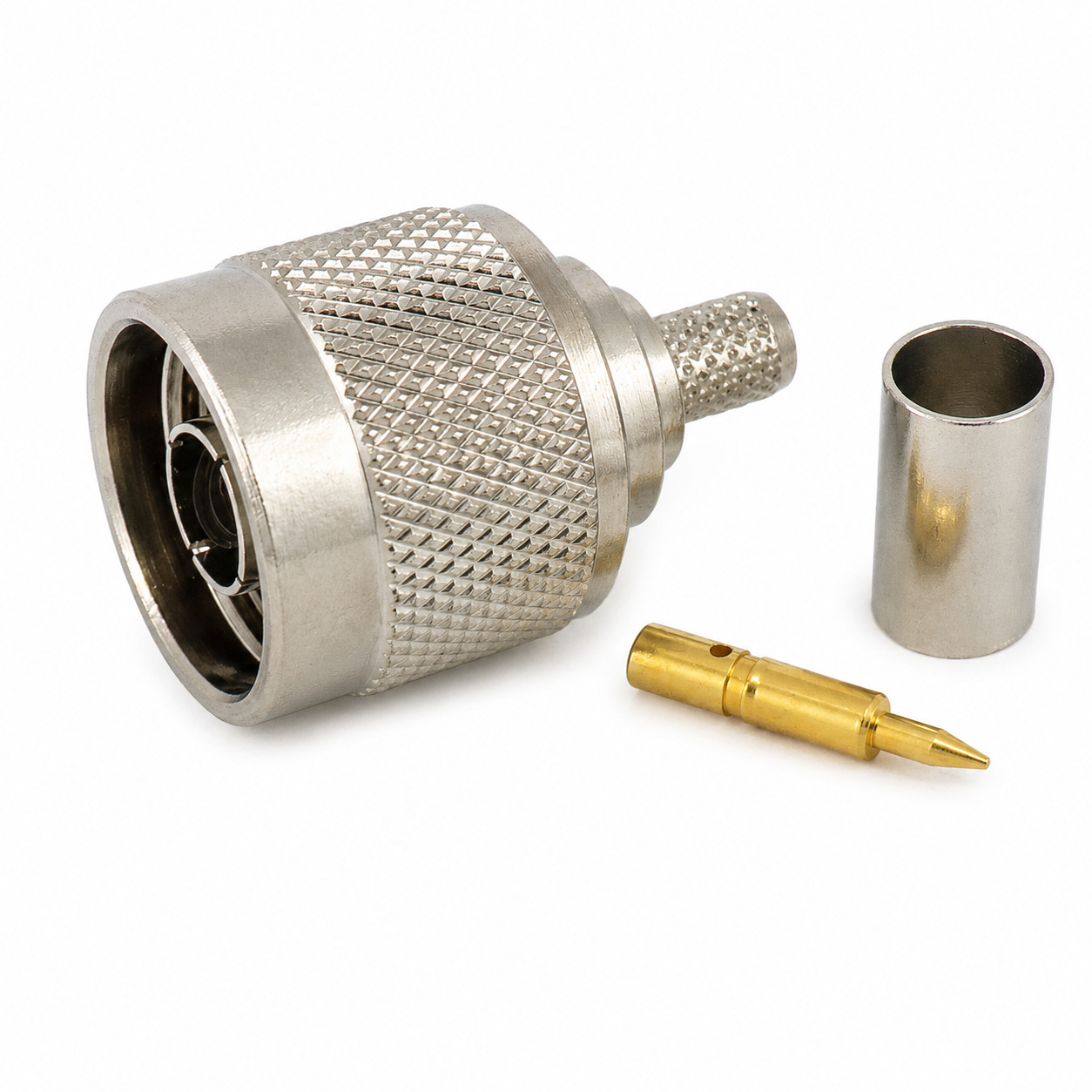

N-Type Plug RF Connector for 240 Series 50 Ohm – Crimp
Connector, N, Plug, 240 Series,
Part Number: CH-NP-240,
N Type,
Plug (Conventional Male),
240 Series, LMR240,
FME Jack RF Connector for 240 Series 50 Ohm – Crimp
Coaxial Connector, FME Jack, 240 Series cable
Part Number: CH-FMEJ-240
Connector: FME
Type: Jack (Conventional Female)
Cable: 240 Series
Fitting: Crimp
SMA Plug RF Connector for 0.085″ Semi-Rigid – Solder JyeBao
Part Number: SMA3300-0085
SMA Connector Plug (Conventional Male), Solder, RG405, semi rigid cable, SMA3300-0085
Dust Cap for SMA Jack Connectors – Plastic
Plastic Cap for SMA female Connectors
BNC Jack to Microdot Plug RF Adapter 50 Ohm
Part Number: CH-BJ-MDP , Adapter BMC female pin (jack) to Microdot male pin (plug) CH-BJ-MDP
SHV Jack RF Connector for RG59 – Bulkhead Crimp
Part Number: SHV8105-0059
SHV connector Jack, (Conventional Female), Bulkhead, Crimp, RG59, SHV8105-0059
HRG316 High-Voltage RF Coaxial Cable – Per Metre 50 Ohm (RG316 Fit)
NEW Price!
Coaxial Cable, Dielectric High Voltage, Fits RG316/174 Connectors
PART NUMBER: HRG316-10-B-2
Cable priced Per Metre, can replace RG316/RG174 cable for High Voltage Applications
RFShopUK-HRG316/RG316 Compatible Products
MANUFACTURER: Hivolt.de
MHV Jack RF Connector – Bulkhead Solder Cup
Coaxial Connector, MHV Jack,
Part Number: MHV8500-0000,
Coaxial Connector,
MHV,
Jack (Conventional Female),
Bulkhead,
Solder Cup,
SMA Plug RF Connector for 0.141″ Semi-Rigid – Solder
Connector, SMA Plug, 0.141″, RG402, Solder, Semi Rigid, CH-AP-141
Conventional Male
Part Number: CH-AP-141
RP-SMA Plug to RP-SMA Jack RF Cable Assembly 2m 200 Series
RP-SMA male to RP-SMA female ext lead Coaxial Cable Assembly 2metres Low Loss
RP-SMA Plug to RP-TNC Jack RF Adapter 50 Ohm
Adapter – RP SMA Plug (Female pin) to RP TNC Jack (Male pin) CH-RAP-RTJ
SMC Plug RF Connector for RG316 – Crimp 50 Ohm
Coaxial Connector, SMC, Plug, RG316, RG174
Part Number: CH-SMCP-316 (Previously CH-CP-316)
Manufacturer: Chang Hong
-£4.28
RP-SMA Plug to RP-TNC Jack RF Adapter 50 Ohm
REDUCED PRICE-END OF LINE. Between-series RP-SMA plug (male body, female centre) to RP-TNC jack (female body, male pin). 50 Ω, straight, nickel-plated body. Ideal for Wi-Fi/IoT gear using reverse-polarity connectors.
Nickel Plated ADAPTOR FINDER
Microdot Jack to Jack RF Adapter – Bulkhead
Adapter-Microdot Jack (Conventional Female) to Microdot Jack (Conventional Female), Bulkhead
Part Number: CH-MDJ-MDJ-BH
UHF Plug (PL259) Connector for LMR400 / RG213 – Crimp
Part Number: CH-UHFP-400 , UHF Plug, male PL259, Crimp, Fits LMR400, (RG214), RG213, RG8 etc
CH-UHFP-400
SMA Plug RF Connector for RG316 – Right Angle Crimp
Part Number: SMA3100-9316
SMA Connector Plug (Conventional Male), Right Angle, RG316, SMA3100-9316
BNC Jack RF Connector – Bulkhead Panel Mount Solder
Coaxial Connector, BNC, Jack, Bulkhead, Panel Mount
Part Number: CH-BJ-01-BH
BNC
Jack (Conventional Female)
Bulkhead
Panel Mount
Solder
SMA Plug RF Connector for 240 Series 50 Ohm – Crimp
SMA Connector, male inner pin, plug, LMR 240, crimp. CH-AP-240
BNC Jack RF Connector for RG58 / LMR195 50 Ohm – Crimp
Coaxial Connector BNC jack, female inner pin, RG58, LMR195, Crimp,CH-BJ-58
SMA Plug RF Connector for LMR400 / RG213 50 Ohm – Crimp
SMA Connector, male inner pin, plug, LMR400, RG213, RG214 crimp. CH-AP-400
N-Type Plug RF Connector for RG58 / LMR200 50 Ohm – Crimp
Connector N-Type Plug LMR200/RG58/LMR195 Crimp (CH-NP-58)
The diameter of the hole in the inner pin is large enough to accommodate the extra thickness of the inner conductor of LMR200 and equivalent cables.
N-Type Jack RF Connector for 0.141″ – Bulkhead Solder 50 Ohm
Connector, N Jack, 0.141 Cable, RG402, Bulkhead, Solder, Clamp, 18GHz, VSWR 1.2, 50 Ohms,
Part Number: N8305B-0141
N-Type Jack RF Connector for RG316 – Bulkhead Crimp
Coaxial Connector, N Jack (Conventional Female pin), Bulkhead, RG316,
Part Number: CH-NJ-316-BH
MMCX Plug RF Connector for RG316 – Crimp
Connector MMCX Plug CH-MMCXP-316
Part Number: CH-MMCXP-316
Coaxial Connector MMCX, Plug (Conventional Male), RG316, RG174
SMA Jack RF Connector – PCB End Launch
Part Number: SMA8401-0000
SMA Connector Jack (Conventional Female), PCB Mount End Launch, SMA84001-0000
RP-SMA Plug to RP-SMA Jack RF Cable Assembly 450mm 1.13mm
Cable Assembly, SMA Plug RP to SMA Jack RP, 1.13mm cable, 0.45M,
Part Number: A60A95-1.13-450,
Connector 1: SMA
Reverse Polarity Plug (Female Inner Pin),
Connector 2:SMA
Reverse Polarity Jack (Male Inner Pin),
Cable Type: 1.13mm * (Covered in Protective layer of 18mm Heat Shrink Tubing)
Length: 0.45m,
*The 1.13 Cable in this assembly is designed to fit through small spaces such a window frame, to enable a signal through a closed window. The Construction is a flat ‘tape like’ cable.
Cable Data
Construction:
Inner Conductor Silver Plated Copper 7/0.08
Dielectric FEP 0.68
Shield Silver Plated Copper 0.9
Jacket FEP (Grey) 1.13
Electrical Characteristics:
Impedance : 50Ω ±3Ω
Capacitance : 98pF/m
Velocity of Propagation : 69%
Max. Operating Frequency : 6GHz
Dielectric Strength : 500V AC / Minute
Rating Current : 1.5A
Minimum Bend Radius : 4.5mm
Spark Test : 2500VRMS
Operating Temp. Range : -55°C to +155°C
700-3800 MHz Multi-Band 5G Dipole Antenna 2 dBi N Plug
Part Number: ANT-NP-700-3800 – compact multi-band “rubber ducky” dipole antenna with N plug (male) for 50 Ω equipment. Covers 700–960, 1700–2700 and 3300–3800 MHz for 2G, 3G, 4G and 5G in one simple stick antenna, with around 2 dBi omnidirectional gain.
RP-TNC Plug to RP-TNC Jack RF Cable Assembly 500mm 200 Series
Part Number: T60T95-200-500-1 , Connector 1: RP TNC Plug (Female pin)
Connector 2: RP TNC Jack (Male pin)
Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz
Length: 0.5m
RG58 RF Coaxial Cable – Per Metre 50 Ohm Unterminated
Coaxial Cable, RG58, Per Metre
Part Number: RG58-PM
Unterminated
Black
Nickel Plated Ferrule for RG223 Cable
Ferrule, Nickel Plated, for RG223 cable,
*Can be used to convert any RG58 Cable Connector to fit a RG223 (simply replace the RG58 Ferrule).
PART NUMBER: CH-F-0223-N
MCX Plug to MMCX Jack RF Adapter 50 Ohm
Adapter, MCX Plug (Conventional Male) to MMCX Jack, (Conventional Female), CH-MCXP-MMCXJ, RFS-100066
Part Number: CH-MCXP-MMCXJ
**Price is for x1 adapter. The photo shows dual view of two adaptors.
SMA Jack RF Connector – Bulkhead PCB End Launch
Part Number: SMA8403-0000
SMA Connector Jack (Conventional Female), PCB Mount for Bulkhead End Launch, SMA8403-0000
N-Type Plug RF Connector 50 Ohm for RG402 – Solder
Connector, N Plug, RG402, Solder,
Part Number: N3300-0141,
Coaxial Connector,
N Type
Plug (Conventional Male),
RG402, 0.141,
Solder,
N-Type Plug RF Connector for RG58 – Right Angle Crimp
Part Number: N3100-9058 , DATASHEET
SHV Plug to SHV Plug RF Cable Assembly 4m RG58 50 Ohm
Coaxial Cable Assembly, SHV Plug to SHV Plug, RG58, 4M, V30V30-58-4000
SHV (High Voltage Connector) Plug to SHV Plug, Standard SHV Male to Male (Female Pin), RG58, 4M,
Part Number: V30V30-58-4000
10-32 Microdot Jack RF Connector for RG316 – Bulkhead Crimp
Coaxial connector 10-32 Microdot jack bulkhead for RG316 cable with crimp termination. This panel mount female connector provides secure signal feedthrough for instrumentation enclosures, accelerometer housings, and sensor junction boxes. Mates with standard 10-32 Microdot plugs. Assembly instructions included.
RG11 RF Coaxial Cable – Per Metre 75 Ohm Unterminated
Coaxial Cable, RG11, Per Metre, Unterminated, Black.
PART NUMBER: RG11U-PM
N Plug to N Plug RF Cable Assembly 5m 200 Series
Part Number: N30N30-200-5000 , Connector 1: N Plug (Male)
Connector 2: N Plug (Male)
Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz
Length: 5m
N-Type Jack RF Connector for RG58 50 Ohm – Bulkhead Crimp
Connector, N, Jack, Bulkhead, RG58,
Part Number: CH-NJ-58-BH,
Coaxial Connector,
N Type,
Jack (Conventional Female/Socket),
Bulkhead,
RG58, 195 Series, 200 Series,
Crimp,
Also Compatible with RG223 if CH-F-0223-N ferrule is purchased as an add on.
SHV Plug to Plug RF Adapter
Adapter, SHV Plug to SHV Plug,
Part Number: AD-V3V3,
Coaxial Adapter,
1: SHV
Plug (Conventional Male),
2: SHV
Plug (Conventional Male),
Manufacturer: JyeBao,
SMA Plug to SMA Jack RF Cable Assembly 5m 200 Series – Bulkhead
Part Number: A30A85-200-5000
RP-TNC Jack RF Connector for RG58 – Bulkhead Crimp 50 Ohm
RP-TNC Jack, (Male Pin), Reverse Polarity, Bulkhead, Crimp, Fits RG58, LMR195, LMR200
Part Number: CH-RTJ-58-BH
SMA Plug RF Connector for RG58 / LMR195 – Crimp
Connector, SMA Plug, Crimp, (Conventional Male), RG58, LMR195, (RG223 with additional Ferrule-223)
Part Number: SMA3100-0058
SHV Jack RF Connector – Bulkhead
Part Number: SHV8500-0000
SHV connector Jack, (Conventional Female), Bulkhead, SHV8500-0000
MCX Plug RF Connector for RG316 – Right Angle Crimp (9316)
Part Number: MCX3100-9316
MCX Plug (Conventional Male), Crimp, RG316, Right Angle, MCX3100-9316
12-32 Microdot Plug RF Connector for RG316 – Crimp 50 Ohm
Coaxial Connector, 12-32, Microdot, Plug, RG316, S-70
Coaxial Connector
Microdot 12-32 Compatible,
Plug (Conventional Male)
Fits RG316
Approx 4.7 mm ID
We also stock the more commonly used >10-32 microdot male connectors.
S-70 compatible – as used in some Krautkramer ultrasonic probes
Alternative to TE connectivity S-70, QC-70 Series (70 Ohm)
032-0016-0001, RF-ASMB-100
032-0031-0001, RF-ASMB-102
032-0079-0001, RF-ASMB
SMA Jack RF Connector for RG58 / LMR195 50 Ohm – Crimp
Connector, SMA, Jack, RG58,
Part Number: CH-AJ-58,
Coaxial Connector,
SMA,
Jack (Conventional Female/ Socket),
RG58, 195 Series,
Crimp,
0.047″ Semi-Rigid RF Coaxial Cable 6.1m 50 Ohm Unterminated
Coaxial Cable, 0.047CU, 6.1M, Unterminated, Semi Rigid, Bare Copper.
PART NUMBER:0.047CU-W-P-50-6.1U
-£0.69
UHF Jack (SO239) RF Connector for 400 Series – Crimp
Connector, UHF Jack (SO239), 400 series, suits RG213 RG214
Part Number: CH-UHFJ-400
Connector Type: UHF Jack (Female Pin), SO239
Cable Type: 400 Series (LMR400), RG213, RG214
Fitting: Crimp
SMA Jack to N Jack RF Adapter 50 Ohm DC-11 GHz
Part Number: AD-A8N8 – SMA jack (female pin) to N jack (female pin) between-series RF adapter for 50 Ω systems. Straight in-line geometry, DC–11 GHz operation with max VSWR 1.2.
DATASHEET
RFShop-Alternative Connector-CH-AJ-NJ
Nickel Plated ADAPTOR FINDER
SMA Plug to SMA Jack RF Cable Assembly 2m 200 Series – Bulkhead
Part Number: A30A85-200-2000
4.3/10 Plug RF Connector for 400 Series – Crimp
Connector, 4.3/10 Plug, L400 (RG213, RG214, RG393)
Coaxial Connector
4.3/10
Plug (Conventional Male),
L400
RG213, RG214, RG393 (Inner pin requires Soldering)
Crimp,
Part Number: CH-4.3P-400
N-Type Plug RF Connector for 1/2″ LDF4 Heliax Cable
Part Number: N3200B1A-LDF4 , DATASHEET
RP-SMA Plug to RP-SMA Jack RF Cable Assembly 300mm 1.13mm
Cable Assembly, SMA Plug RP to SMA Jack RP, 1.13mm cable, 0.3M,
Part Number: A60A95-1.13-300,
Connector 1: SMA
Reverse Polarity Plug (Female Inner Pin),
Connector 2:SMA
Reverse Polarity Jack (Male Inner Pin),
Cable Type: 1.13mm * (Covered in Protective layer of 18mm Heat Shrink Tubing)
Length: 0.3m,
*The 1.13 Cable in this assembly is designed to fit through small spaces such a window frame, to enable a signal through a closed window. The Construction is a flat ‘tape like’ cable.
Cable Data
Construction:
Inner Conductor Silver Plated Copper 7/0.08
Dielectric FEP 0.68
Shield Silver Plated Copper 0.9
Jacket FEP (Grey) 1.13
Electrical Characteristics:
Impedance : 50Ω ±3Ω
Capacitance : 98pF/m
Velocity of Propagation : 69%
Max. Operating Frequency : 6GHz
Dielectric Strength : 500V AC / Minute
Rating Current : 1.5A
Minimum Bend Radius : 4.5mm
Spark Test : 2500VRMS
Operating Temp. Range : -55°C to +155°C
Semi-Rigid Cable Bending Tool for 0.086″ / 0.141″
Tools, Semi Rigid Cable Bending Tool, RG402, RG405, 0.141″,0.086″
Part Number: Rg402_405bender
RFshop manufactures a professional hand operated cable benders, specifically designed for RG402 and RG405 semi rigid coaxial cable. They can be used with either copper, stainless steel or aluminium jacketed RG402 or RG405.
The bender is capable of forming complex, fully formed bends without any distortion of the critical internal dimensions of the cable. Bend angles ranging from 0 to 180° are possible.
MHV Plug RF Connector for RG58 – Crimp
Coaxial Connector, MHV Plug, RG58,
Part Number: MHV3100-0058,
Coaxial Connector,
MHV,
Plug (Conventional Male),
RG58,
Crimp,
N Jack to N Jack RF Adapter 50 Ohm
Adapter, N Jack to N Jack,
Part Number: AD-N8N8,
Coaxial Adapter,
1: N Type
Jack (Conventional Female/ Socket),
2: N Type
Jack (Conventional Female/ Socket),
Manufacturer: Jye Bao,
N-Type Plug RF Connector for LMR400 / RG213 50 Ohm – Crimp
Coaxial, N connector Plug, N male, fits LMR400, Crimp, CH-NP-400
0.141″ Hand-Bendable RF Coaxial Cable 50 Ohm Per Metre
Coaxial Cable, Per Metre, (Sucoform equivalent) .141SRF-W-P-50-PM
High-performance 0.141″ (3.58 mm) hand-bendable coaxial cable with 50 Ω impedance, PTFE dielectric and a solid SPCW (silver-plated copperweld) centre conductor. Unjacketed Cu/Sn braided outer conductor provides ≥100 dB shielding up to 18 GHz and operation to 40 GHz. Supplied per metre; Sucoform-style semi-flex equivalent (RG-402 / UT-141 size). PART NUMBER: 0.141SRF-W-P-50-PM
30 Metre roll available at £10.99 per Metre:
SMA Jack to QMA Plug RF Adapter 50 Ohm
Adapter, SMA Jack to QMA Plug,
Part Number: CH-AJ-QMAP,
Coaxial Adapter,
- SMA Jack (Conventional Female),
- QMA Plug (Conventional Male),
2-Way RF Power Splitter 700-2700 MHz SMA Jack 50 Ohm
Splitter, SMA Jack, 700 MHz-2.7 GHz, 2 way
Part Number: SP-0727-01-SF
Manufacturer: Chang Hong
SMA Jack RF Connector for RG58 – Crimp
Connector, SMA Jack (Conventional Female), Crimp, RG58, (RG223 with additional Ferrule-223)
Part Number: SMA8100-0058
Ratchet Crimping Tool for Coaxial Connectors
Tools, Ratchet Crimp Tool (96-336K), Part Number HT-336
Crimping Tool Only
Part Number: HT-336
See also this toolkit
TNC Plug RF Connector for RG58 – Crimp
Part Number: TNC3100-0058
TNC Plug (Conventional Male), Crimp, RG58, TNC3100-0058
SMA Jack RF Connector – 2-Hole Flange Round Contact 50 Ohm
Part Number: SMA862N-0032
SMA Jack (Conventional Female), 2 Hole Flange, Round Contact, SMA862N-0032
N-Type Jack RF Connector for RG58 / LMR195 – Crimp
Connector, N Jack (Conventional Female), RG58, LMR195, (RG223 needs additional Ferrule-0223)
Part Number: N8100-0058
DATASHEET-N8100-0058
