Torque Wrench, SMA , 3.5mm, 1.85mm, TOW-A8AF8.85IL

Product Description

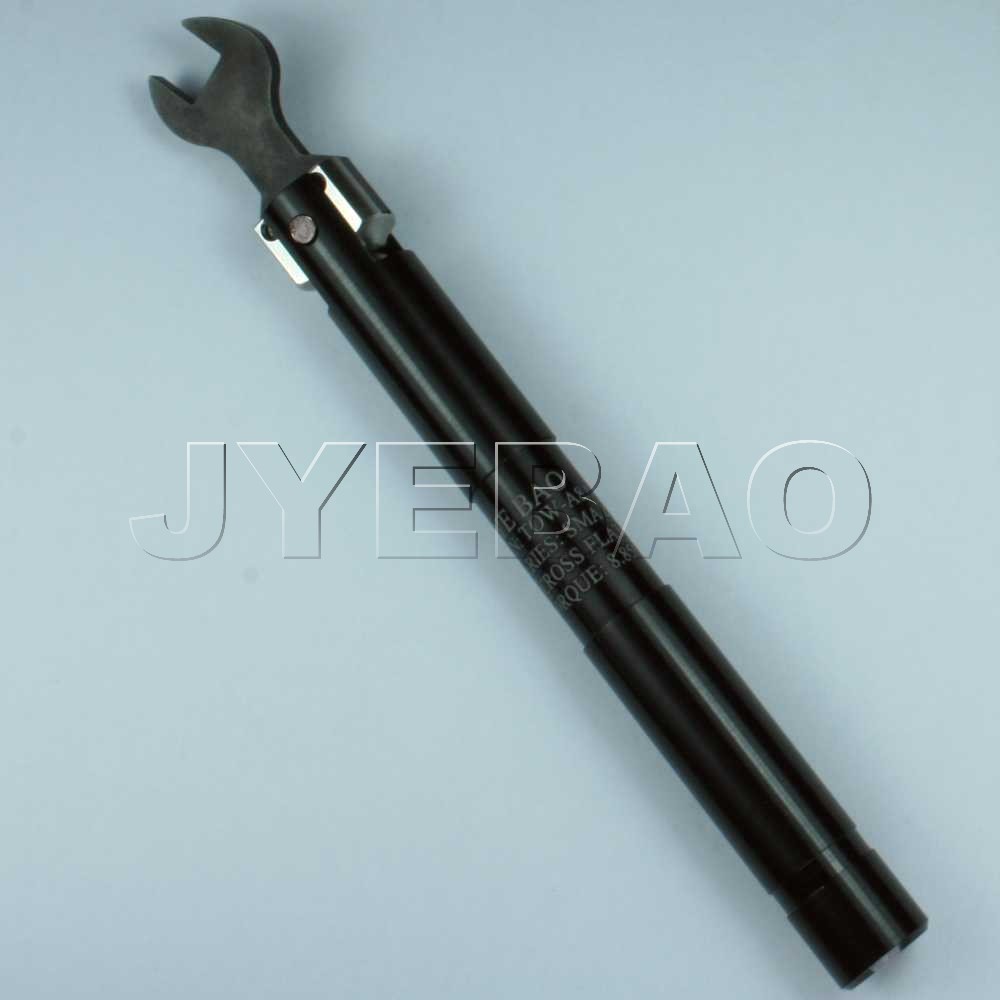

SMA / 3.5 mm / 1.85 mm Torque Wrench – 8.85 in-lb

Part Number: TOW-A8AF8.85IL

Delivers consistent connector mating torque for stainless-steel SMA family interfaces (also 3.5 mm and 1.85 mm). Correct torque helps minimise VSWR changes and prevents over-tightening damage in lab use.

• Preset torque: 8.85 in-lb (≈1.0 N·m); across-flats: 8 mm
• Use for stainless SMA/3.5 mm/1.85 mm; brass SMA typically uses lower torque

Typical applications

• Repeatable measurements on VNAs, spectrum analysers and fixtures
• Protecting precision RF connectors from damage

Compatibility – quick check

• 5/16″ (8 mm) hex, break-over style preferred for consistency
• Stainless SMA, 3.5 mm or 1.85 mm interfaces
