Fixed Attenuator, N Plug to N Jack, (Conventional Male to Female), 50ohms, DC, 10GHz, 2Watt, 30dB, FAT-NM5NF5T10G2W30
Original price was: £40.88.£34.75Current price is: £34.75. Ex Vat
64 in stock
Product Description
FAT-NM5NF5T10G2W30 30dB N Attenuator – N Plug to N Jack, DC–10 GHz, 2 W
Part Number: FAT-NM5NF5T10G2W30

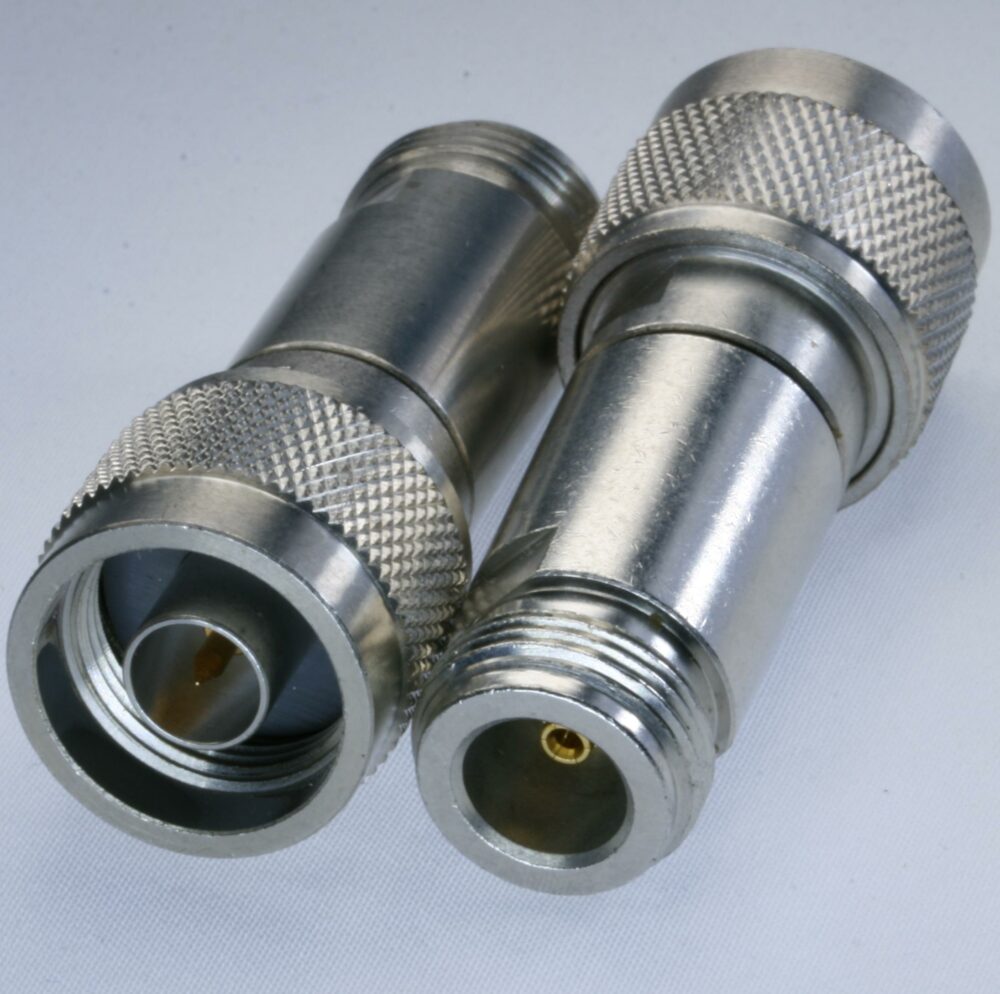

The Jye Bao FAT-NM5NF5T10G2W30 is a 30 dB fixed attenuator with a straight N plug (male) on one side and N jack (female) on the other, designed for use in 50 Ω RF systems. It provides a precise 30 dB attenuation value over the DC–10 GHz range, making it ideal for level setting, receiver protection and general RF test work.
The attenuator is rated for 2 W average power over the operating temperature range and up to 100 W peak for 25 µs. Nominal impedance is 50 Ω ±0.25 Ω, with excellent VSWR and attenuation flatness across band. The robust N-type body construction and plated brass hardware ensure good mechanical durability and stable RF performance.
- Fixed attenuator, N plug (male) to N jack (female)
- Attenuation value: 30 dB
- Impedance: 50 Ω ±0.25 Ω
- Frequency range: DC to 10 GHz
- Average power rating: 2 W over operating temperature range
- Peak power rating: 100 W for 25 µs
- Typical attenuation tolerance (per datasheet):
- DC–2 GHz: ±0.3 dB
- 2–5 GHz: ±1.5 dB
- 5–10 GHz: ±4 dB
- VSWR (max, per datasheet):
- DC–2 GHz: ≤1.10
- 2–5 GHz: ≤1.25
- 5–10 GHz: ≤1.35
- Operating temperature range: −50 °C to +80 °C
- Power coefficient: approx. 0.001 dB/W
- Temperature coefficient: typ. 0.0003 dB/°C (max. 0.001 dB/°C)
- Approx. length 53.2 mm, weight 70.84 g (per datasheet)
- PTFE dielectric with plated brass body and contacts
- RoHS compliant
Typical applications
- Setting signal levels in RF test and measurement systems
- Protecting sensitive receivers and instruments from high input power
- Improving matching and isolation in N-type feeder systems
- General 50 Ω RF and microwave lab use up to 10 GHz
Compatibility notes
Designed for 50 Ω systems using standard N-type connectors. Not suitable for 75 Ω networks. Ensure average and peak power levels do not exceed the specified ratings.
| Weight | 0.1 g |
|---|
