SMA362-N300AB, SMA Connector male pin

Product Description

REDUCED PRICE-END OF LINE.

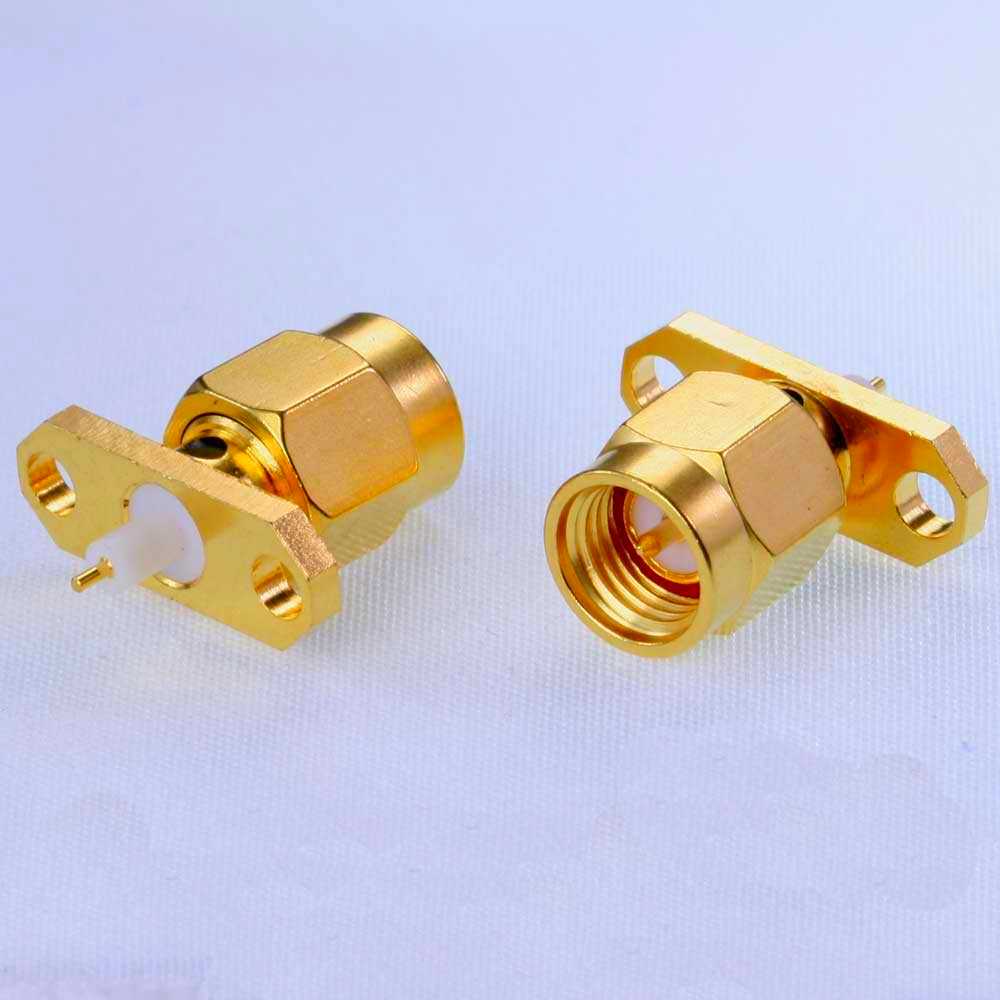

SMA Connector – Plug (Male), 16 mm 2-Hole Flange Mount, Straight, 50 Ω, DC–18 GHz (VSWR ≤ 1.25)

Part Number: SMA362N3-00AB

Manufacturer: JYEBAO

High-frequency SMA plug flange-mount connector designed for compact panel/enclosure interfaces up to 18 GHz.
Features a Ø16 mm 2-hole flange and a round centre contact (Ø0.6, L=1.5) with PTFE dielectric.

Common Use Cases

• Panel / enclosure RF feedthrough: Add a robust SMA interface to a metal enclosure using the 2-hole flange pattern.
• Test fixtures & RF jigs: Reliable SMA interface for lab setups up to 18 GHz where repeatable mounting is needed.
• Embedded RF equipment builds: Ideal for small RF boxes, filters, couplers, attenuator housings, and instrumentation front panels.
• Precision mating ecosystems: Datasheet states mechanical compatibility with 2.92 mm & 3.5 mm interfaces (mechanical compatibility note).

Key Features

• Connector series: SMA
• Gender: Plug (Male)
• Mounting style: 16 mm flange, 2-hole
• Impedance: 50 Ω
• Frequency range: DC–18 GHz
• VSWR: ≤ 1.25 (DC–18 GHz)

Electrical Specifications (Datasheet)

Mechanical & Environmental (Datasheet)

• Recommended coupling nut torque: 4 in-lb
• Coupling proof torque: 5.3 in-lb
• Durability (mating): ≥ 100 cycles
• Temperature range: -40°C to +165°C
• RoHS: Compliant

Materials & Plating (Datasheet)

• Body: Brass, Gold 4 µin over Nickel-Phosphorus alloy 80 µin over Copper 20 µin
• Coupling nut: Brass, Gold 4 µin over Nickel-Phosphorus alloy 80 µin over Copper 20 µin
• Contact pin: Brass, Gold 4 µin over Nickel-Phosphorus alloy 80 µin over Copper 20 µin
• Insulator: PTFE (Teflon)
• Gasket: Silicon

Dimensions / Fit Check (from outline drawing)

• Flange diameter: Ø16 mm
• Mounting holes: 2 × Ø2.6 mm
• Centre contact: Ø0.6 mm, L=1.5 mm
• Weight: 3.37 g

RF Plot (S11 example markers)

• S11 at 10.1509 GHz: -20.23 dB
• S11 at 2.9892 GHz: -31.39 dB

Click to access SMA362N3-00AB.pdf
