SMA362L-0000 SMA Plug (Male) 2-Hole Flange Mount Connector – Straight, 50Ω, DC–27GHz

Product Description

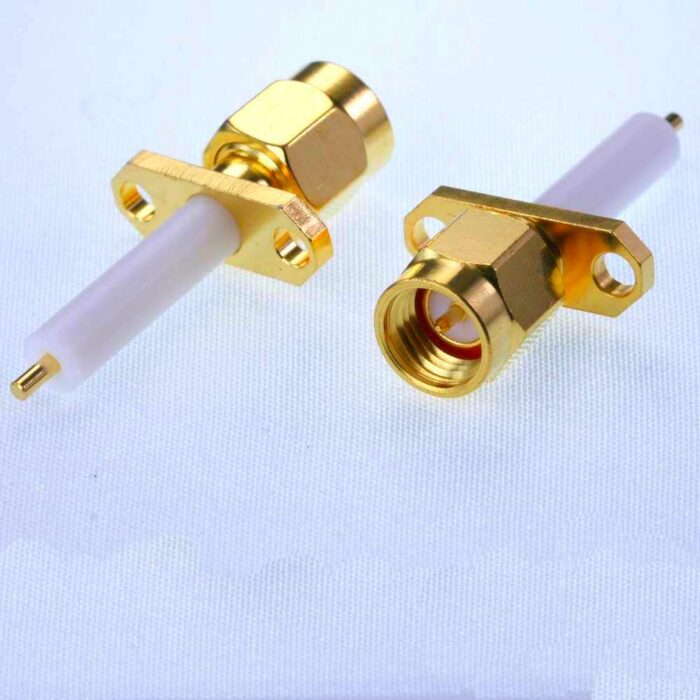

JYEBAO SMA362L-0000 – SMA Plug (Male) 2-Hole Flange Mount, 50 Ω, DC–27 GHz

The SMA362L-0000 is a high-frequency SMA plug (male) straight connector designed for
reliable panel/enclosure mounting using a Ø16 mm 2-hole flange.
It provides a robust, repeatable RF interface for microwave assemblies, test fixtures, and instrumentation I/O.

Common use cases

• RF enclosure feedthroughs: Add a rugged SMA interface to metal chassis panels.
• Test fixtures & lab jigs: Flange mounting improves repeatability vs free-hanging connectors.
• Microwave modules: Suitable for filters, couplers, attenuator boxes, switch housings and instrument ports up to 27 GHz.
• Intermate ecosystems: Often used in systems that mate across SMA / 3.5 mm / 2.92 mm hardware (verify requirements for your application).

Key features

• Series: SMA
• Gender: Plug (Male)
• Mounting: Ø16 mm flange, 2-hole
• Impedance: 50 Ω
• Frequency range: DC–27 GHz
• VSWR: ≤ 1.3 (DC–27 GHz)

Specifications

Mechanical & environmental

• Recommended coupling torque: 4 in-lb
• Coupling proof torque: 5.3 in-lb
• Durability: ≥ 100 mating cycles
• Temperature range: -65°C to +165°C
• RoHS: Compliant

Materials & plating

• Body / coupling nut / contact: Brass, gold plated (with underplating layers as per datasheet)
• Insulator: PTFE (Teflon)
• Gasket: Silicon

Dimensions (fit check)

• Flange diameter: Ø16 mm
• Mounting holes: Ø2.6 mm × 2
• Hex: 8 mm (A/F)
• Contact: Ø1.27 mm (round)
• Weight: 3.92 g

Downloads

Datasheet – SMA362L-0000 (PDF)
