N connector, fem pin, panel mount, RG316, RG174, RG188, LMR100 crimp N8146-0316

Product Description

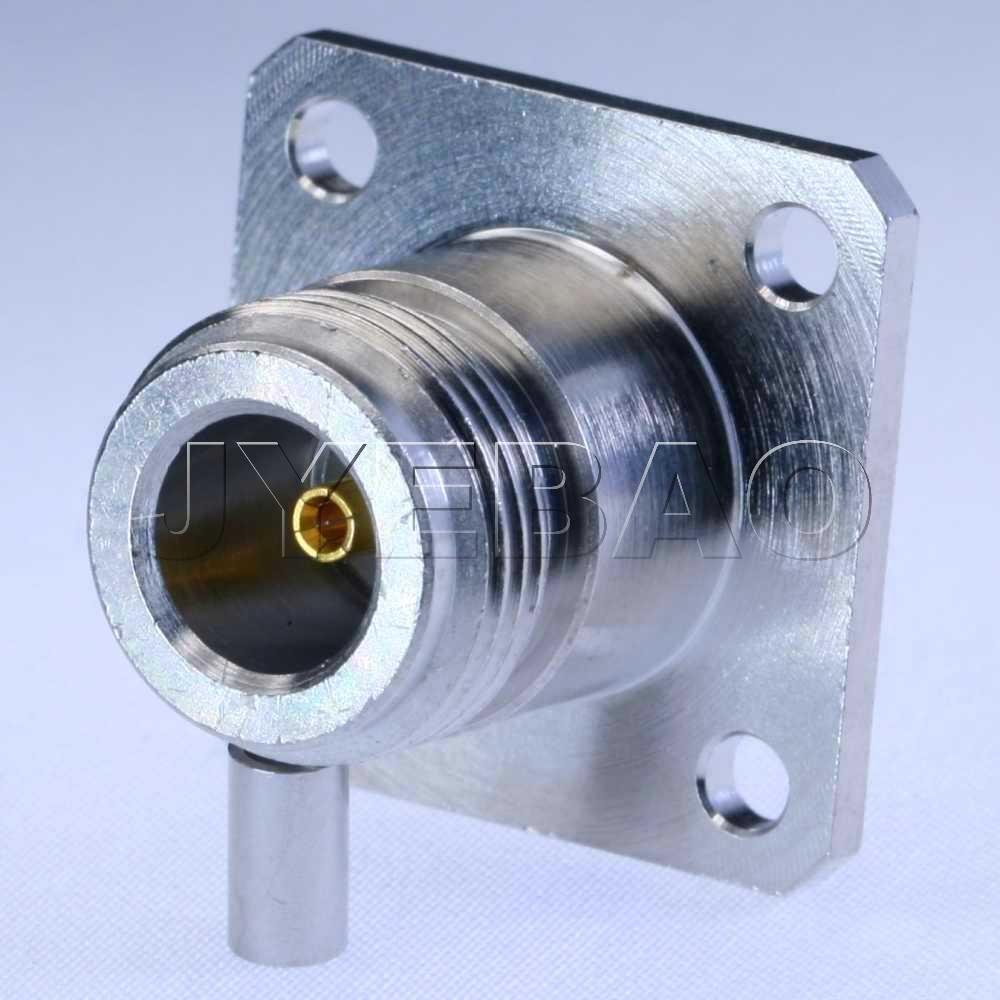

JYEBAO N8146-0316 – N Type Jack (Female) 4-Hole Flange Mount for RG174 / RG188 / RG316 (50 Ω, DC–6 GHz)

The N8146-0316 is an N Type Jack (female) connector designed for secure chassis/panel mounting using a
25.4 mm square 4-hole flange. It terminates to RG174 / RG188 / RG316 family cables using a
crimp ferrule and a centre conductor termination that may be soldered or crimped (per the datasheet instruction).

Common use cases

• Panel feedthroughs: Create a robust N female interface on enclosures, plates, test fixtures and equipment panels.
• RF patch panels: 4-hole flange mounting provides strong mechanical retention for repeated mating.
• RG316/RG174 assemblies: Ideal for compact coax runs where you still want the rugged N interface.

Key features

• Series: N Type
• Gender: Jack (Conventional Female)
• Mounting: 4-hole flange, 25.4 mm square
• Impedance: 50 Ω
• Frequency range: DC–6 GHz
• VSWR: ≤ 1.2 (DC–6 GHz)
• Suitable cables: RG174, RG188, RG316, RG316-E, RG316-FEP
• RoHS: Compliant

Electrical specifications (datasheet)

Mechanical & environmental (datasheet)

• Interface: MIL-STD-348B
• Recommended coupling nut torque: 6 to 10 in-lb
• Coupling proof torque: 15 in-lb
• Durability: ≥ 500 mating cycles
• Temperature range: -65°C to +165°C
• Weight: 32 g

Crimp tooling (datasheet)

• Crimping tool: CRT-1 or CRT-2
• Crimp insert: INSERT-A

Assembly notes (from JYEBAO instruction sheet)

• Strip cable to the dimensions shown in the PDF.
• Slide ferrule over cable, loosen braid, and fit barrel.
• Fit insulator and pin onto centre conductor and solder or crimp at the indicated point.
• Crimp the ferrule using the specified INSERT-A hex section (per drawing).
