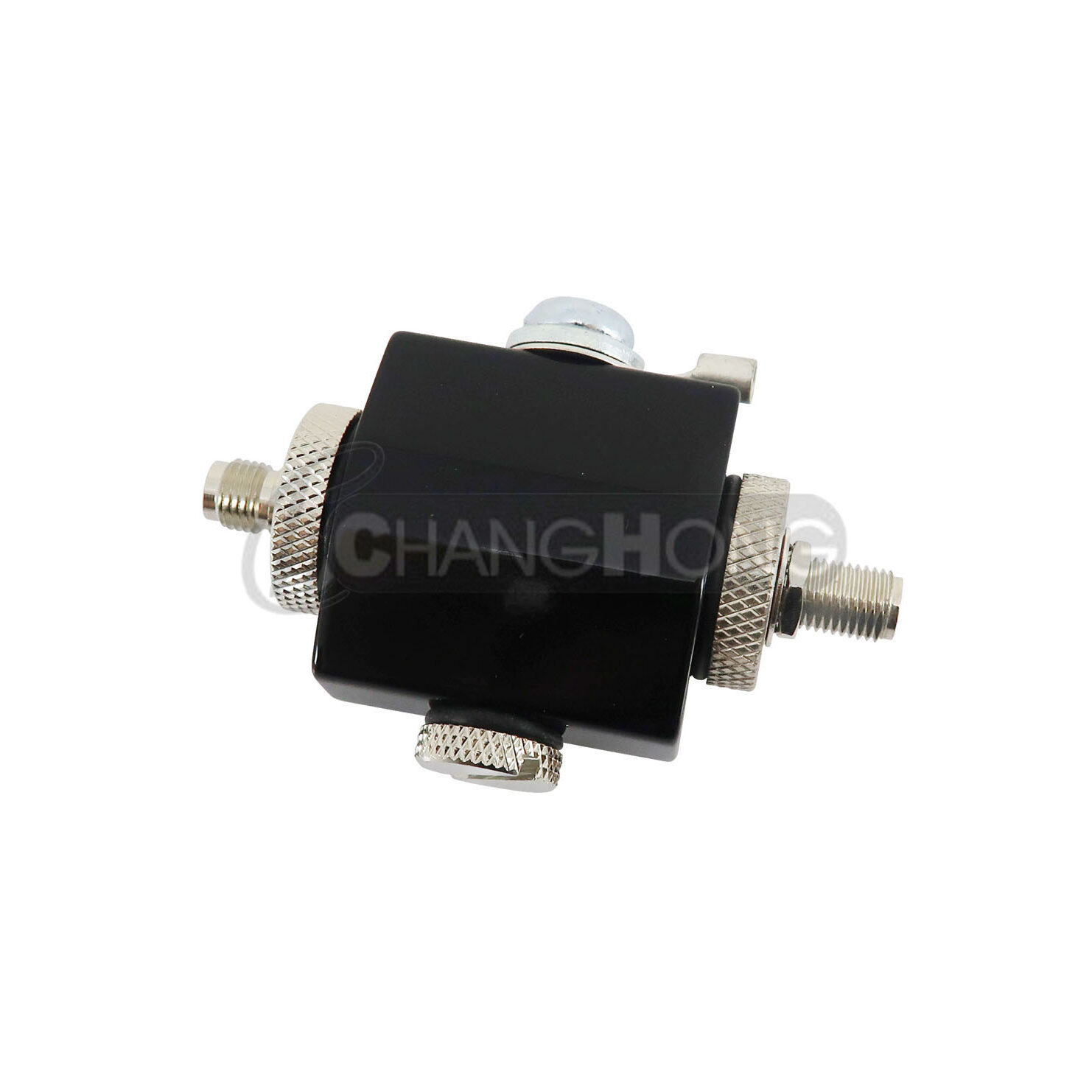

Lightning Protector, SMA Jack to SMA Jack Bulkhead, 2.5 GHz, CH-LP-A80A85-2.5

Product Description

Lightning Protector (Surge Arrester) – SMA Jack to SMA Jack Bulkhead, DC–2.45 GHz (2.5 GHz class)

Part Number: CH-LP-A80A85-2.5

Inline coaxial lightning/surge protector for RF feeds. Designed for SMA systems where you want a
bulkhead/panel-mount protector at an enclosure or entry panel.
For effective protection, the bulkhead body must be properly bonded/earthed as part of a complete surge protection system.

Key Features

• Connectors: SMA Jack (Female, conventional) to SMA Jack (Female, conventional)
• Mounting: Bulkhead / panel mount
• Frequency range: DC–2.45 GHz (listed as “2.5 GHz” class on product title)
• RF performance plots available (S11 / S21)

Typical RF Performance (from plot PDF)

• Insertion loss (S21): ~0.45 dB @ 300 MHz, ~0.32 dB @ 900 MHz, ~0.40 dB @ 1.5 GHz, ~0.48 dB @ 2.45 GHz
• Return loss (S11): ~26.5 dB @ 300 MHz, ~21.2 dB @ 900 MHz, ~18.5 dB @ 1.5 GHz, ~17.2 dB @ 2.45 GHz
• Out-of-band attenuation example: ~18.2 dB (S21) @ 5.8 GHz (per marker on plot)

Note: The supplied plot sheet is titled “Up to 2.5GHz Lightning Protector”. Use the PDF for the full trace/markers.

Installation Notes

• Fit at the enclosure/building entry point where possible.
• Bulkhead mounting is intended to allow the unit to be mounted and earthed to a conductive panel/earth bar.
• Lightning protection is system-dependent: earthing/bonding and cable routing matter.

Download

Lightning Protector – CH-LP-A80A85-2.5GHz – Plots (PDF)
