BNC Plug (Male) Crimp Connector for RG59 – 75Ω Video/CCTV Coax CH-BP-59

Product Description

CH-BP-59 – BNC Plug (Male) Connector for RG59 Coax

The CH-BP-59 is a BNC plug (male) coax connector designed to terminate RG59 cable.
It is typically used in 75Ω coax systems such as video/CCTV, SDI-style patching, and general BNC interconnect work.

Common use cases

• CCTV & video coax runs: RG59 is widely used in 75Ω video/CCTV cabling where BNC is the standard interface.
• Patch leads & test cables: Build custom-length RG59 BNC leads for racks, comms rooms and bench setups.
• Repairs & re-terminations: Replace damaged ends on existing RG59 coax quickly using crimp-style parts.

Key features

• Connector series: BNC
• Gender: Plug (Male) with male centre pin
• Cable type: RG59

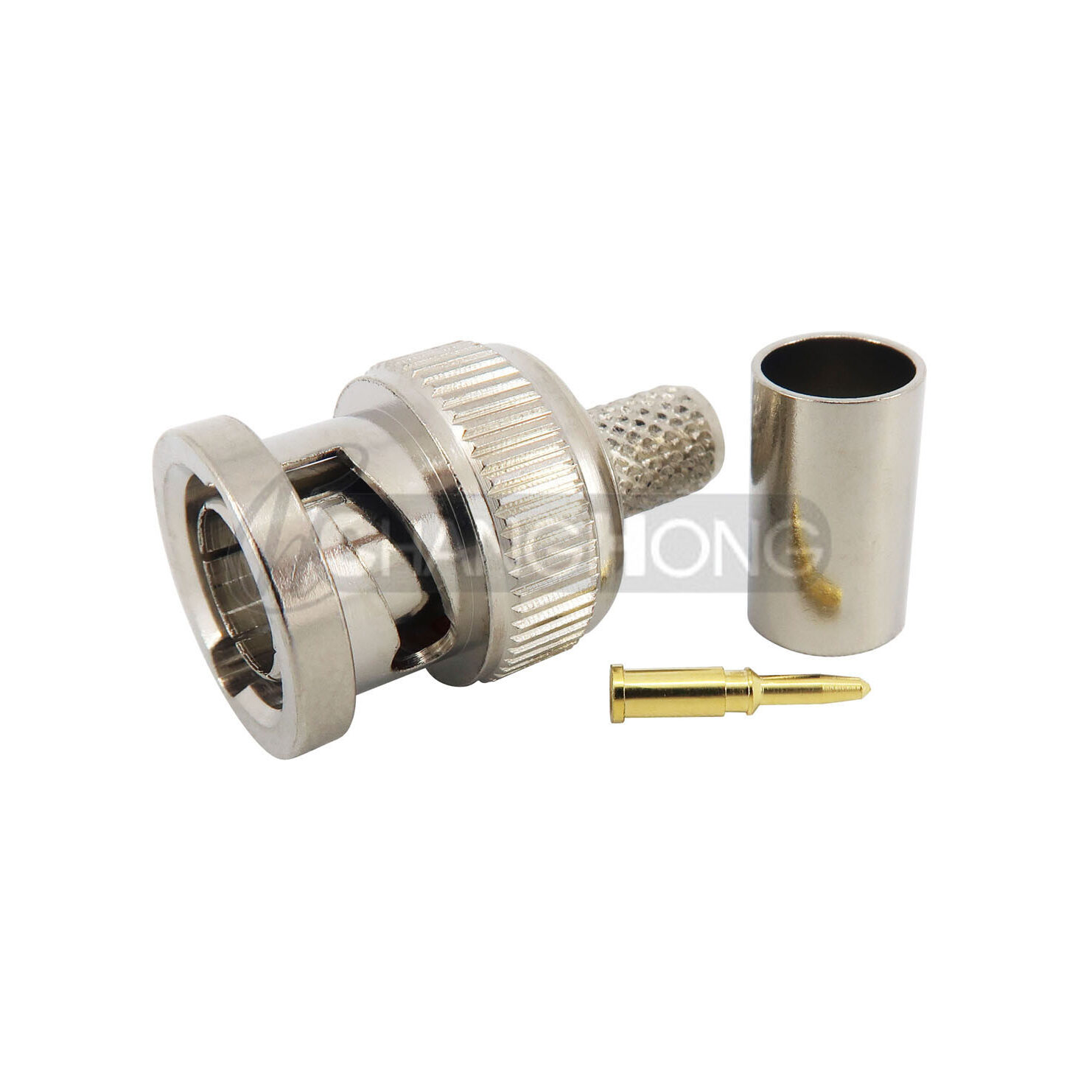

• Termination style: Crimp-style assembly (connector body + centre pin + ferrule as shown)

What’s included

• BNC plug connector body
• Male centre pin
• Crimp ferrule

Assembly notes (general guidance)

• Strip RG59 to suit your connector’s pin/ferrule dimensions (follow your build spec / tooling guide).
• Fit the centre pin to the centre conductor (crimp or solder depending on your process).
• Position braid/foil correctly and crimp the ferrule for a secure 360° shield termination.
• Inspect for shorts/whiskers and continuity-test before use.
