JBY195 LSFH JBY195-LSFH-PM - RFShop UK <p><strong>JBY195-LSFH</strong> is a flexible, low loss 50 ohm coaxial cable with a low smoke, halogen free (LSFH) jacket – ideal for indoor RF links where fire performance and smoke toxicity matter. Electrically it is a 195-series cable with similar dimensions to RG58, but with lower loss and better shielding.</p> <ul> <li><strong>Impedance:</strong> 50 ohm, flexible 195-series low loss cable</li> <li><strong>Jacket:</strong> LSFH (low smoke, halogen free) for indoor and public-area use</li> <li><strong>Frequency range:</strong> DC to 6 GHz (typical applications to ~3 GHz)</li> <li><strong>Attenuation (typ.):</strong> ≈25.5 dB/100 m @ 450 MHz, 36.5 dB/100 m @ 900 MHz</li> <li><strong>Construction:</strong> foamed PE dielectric, aluminium tape plus tinned copper braid</li> <li><strong>Sold per metre:</strong> enter the length you need (continuous length supplied where possible)</li> </ul>

Quantity	Discount (%)	Price
1 - 9	—	£3.99
10 - 29	10.03 %	£3.59
30+	25.06 %	£2.99

Coaxial Cable, JBY195-LSFH, Per Metre, Unterminated, Low Smoke Halogen Free

JBY195-LSFH is a flexible, low loss 50 ohm coaxial cable with a low smoke, halogen free (LSFH) jacket – ideal for indoor RF links where fire performance and smoke toxicity matter. Electrically it is a 195-series cable with similar dimensions to RG58, but with lower loss and better shielding.

Impedance: 50 ohm, flexible 195-series low loss cable
Jacket: LSFH (low smoke, halogen free) for indoor and public-area use
Frequency range: DC to 6 GHz (typical applications to ~3 GHz)
Attenuation (typ.): ≈25.5 dB/100 m @ 450 MHz, 36.5 dB/100 m @ 900 MHz
Construction: foamed PE dielectric, aluminium tape plus tinned copper braid
Sold per metre: enter the length you need (continuous length supplied where possible)

£3.99 Ex Vat

90 in stock

Description

Product Description

Overview

JBY195-LSFH is a flexible, low loss 50 ohm coaxial cable with a
low smoke, halogen free (LSFH) outer jacket. It is the LSFH version of the
popular JBY195 195-series cable, offering similar electrical performance and size, but with a
low smoke, zero-halogen jacket that is better suited to indoor installations, public buildings,
and other environments where fire and smoke performance are important.

Electrically, JBY195-LSFH is a 195-size 50 ohm RF cable designed for use up to around
6 GHz, with significantly lower loss than standard RG58 and with
good shielding effectiveness (>90 dB). It works well for short to medium RF runs,
pigtails, jumper cables, test leads, and general RF interconnects.

Key Features

50 ohm low loss, 195-series cable – suitable for a wide range of RF and microwave applications.
LSFH jacket – low smoke, halogen free outer jacket to reduce toxic emissions in a fire.
Flexible construction – solid bare copper centre conductor, foamed PE dielectric, aluminium foil and tinned copper braid.
Good shielding – typical shielding effectiveness better than 90 dB.
Wide operating range – DC to 6 GHz with typical use up to around 3 GHz.
Compact size – approx. 3.44 mm over braid and 4.95 mm over the jacket.
Per-metre ordering – order exactly the length you need; continuous lengths supplied wherever possible from stock reels.

Typical Applications

Indoor RF links and distribution systems
DAS (Distributed Antenna Systems) and in-building coverage
Short to medium length antenna feeder runs
Lab and test-bench interconnects and patch leads
Custom cable assemblies using standard 195-series (RG58 / JBY195) connectors
Equipment jumpers, pigtails and OEM harnesses

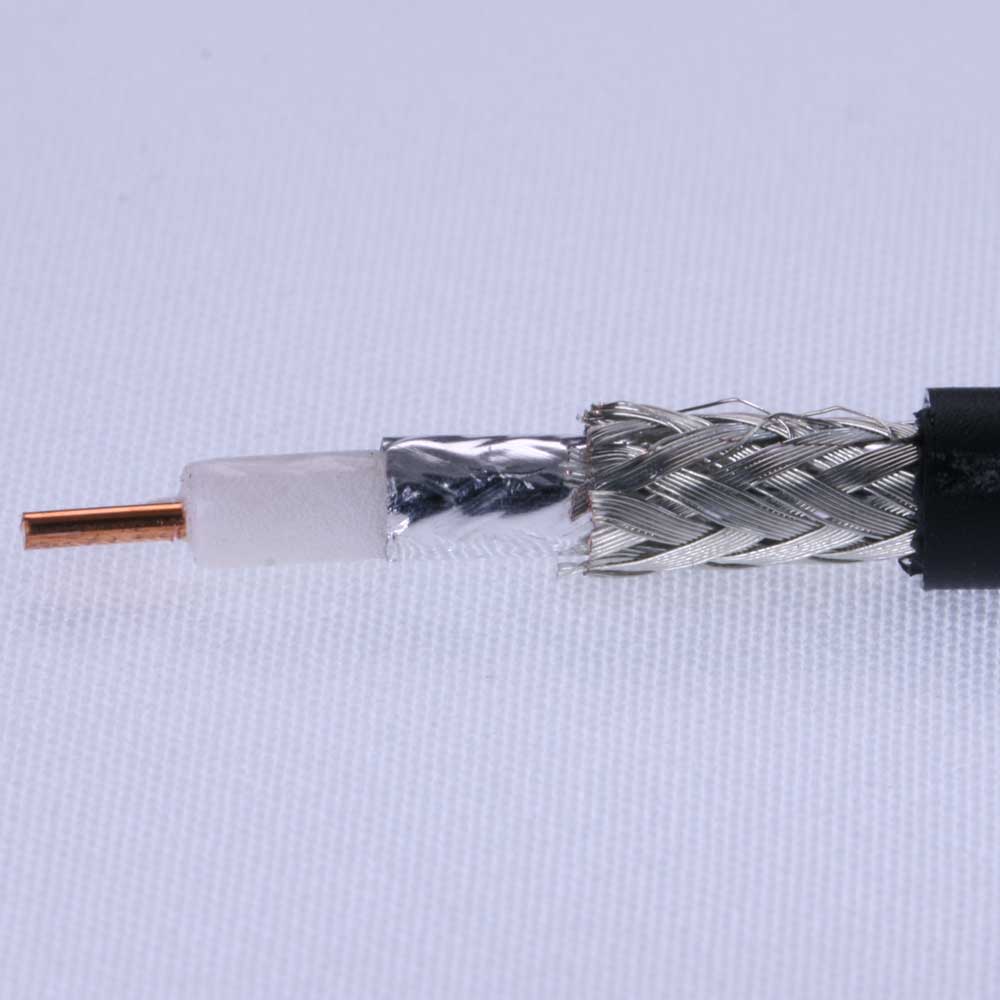

Construction Details

From the centre outwards:

Centre conductor: solid bare copper, approx. 0.95 mm (0.037 inch) diameter.
Dielectric: foamed polyethylene, approx. 2.87 mm (0.113 inch) diameter.
Outer conductor: aluminium tape shield with an overall tinned copper braid (double shield).
Diameter over braid: approx. 3.44 mm (0.135 inch).
Outer jacket: low smoke, halogen free (LSFH), approx. 4.95 mm (0.195 inch) overall diameter.

Electrical Performance (Typical)

The figures below are typical values derived from the manufacturer’s datasheet.
Actual performance will depend on installation and termination quality.

Characteristic impedance	50 ohm (±2 ohm)
Capacitance (nominal)	≈3.18 pF/ft (≈80.7 pF/m)
Inductance (nominal)	≈0.064 µH/ft (≈0.21 µH/m)
Velocity factor	≈80 %
DC resistance (inner)	≈7.6 ohm/1000 ft (≈24.9 ohm/km)
DC resistance (outer)	≈4.9 ohm/1000 ft (≈16.1 ohm/km)
Dielectric strength	DC 1000 V
Peak power rating	≈2.5 kW (under specified conditions)
Shielding effectiveness	>90 dB (typical)
Frequency range (recommended)	DC to 6 GHz

Typical Attenuation and Power Handling

Frequency	Attenuation (dB/100 m)	Approx. avg. power (W)
30 MHz	≈6.5	≈850
50 MHz	≈8.4	≈660
150 MHz	≈14.6	≈380
220 MHz	≈17.7	≈310
450 MHz	≈25.5	≈210
900 MHz	≈36.5	≈150
1500 MHz	≈47.7	≈120
1800 MHz	≈52.5	≈110
2000 MHz	≈55.4	≈100
2500 MHz	≈62.4	≈90
5800 MHz	≈100	≈60

Mechanical Data

Operating temperature range	−40 °C to +80 °C
Overall diameter	≈4.95 mm (0.195 inch)
Diameter over braid	≈3.44 mm (0.135 inch)
Weight	≈39.4 g/m (≈12 g/ft)
Minimum bend radius (static)	≈12.7 mm (0.5 inch)
Minimum bend radius (dynamic)	≈51 mm (2 inch, up to 25 flex cycles)

Connector Compatibility

JBY195-LSFH is the same size family as JBY195 and RG58, so it works with standard
195-series / RG58 style crimp and clamp connectors (SMA, N, TNC, BNC etc.) that specify
compatibility with JBY195 or JBY195-LSFH. This makes it straightforward to build
custom assemblies using the existing range of 195-series connectors stocked by RFShop.

Compliance and Notes

RoHS compliant cable construction.
Low smoke, halogen free (LSFH) jacket for improved fire performance and reduced toxic fumes.
Supplied from stock reels; continuous lengths shipped where possible. If you need a specific cut pattern or pre-terminated assembly, please contact us.
