BNC3100-L240, BNC Connector, male pin , 240
£3.71 Ex Vat
94 in stock
Product Description

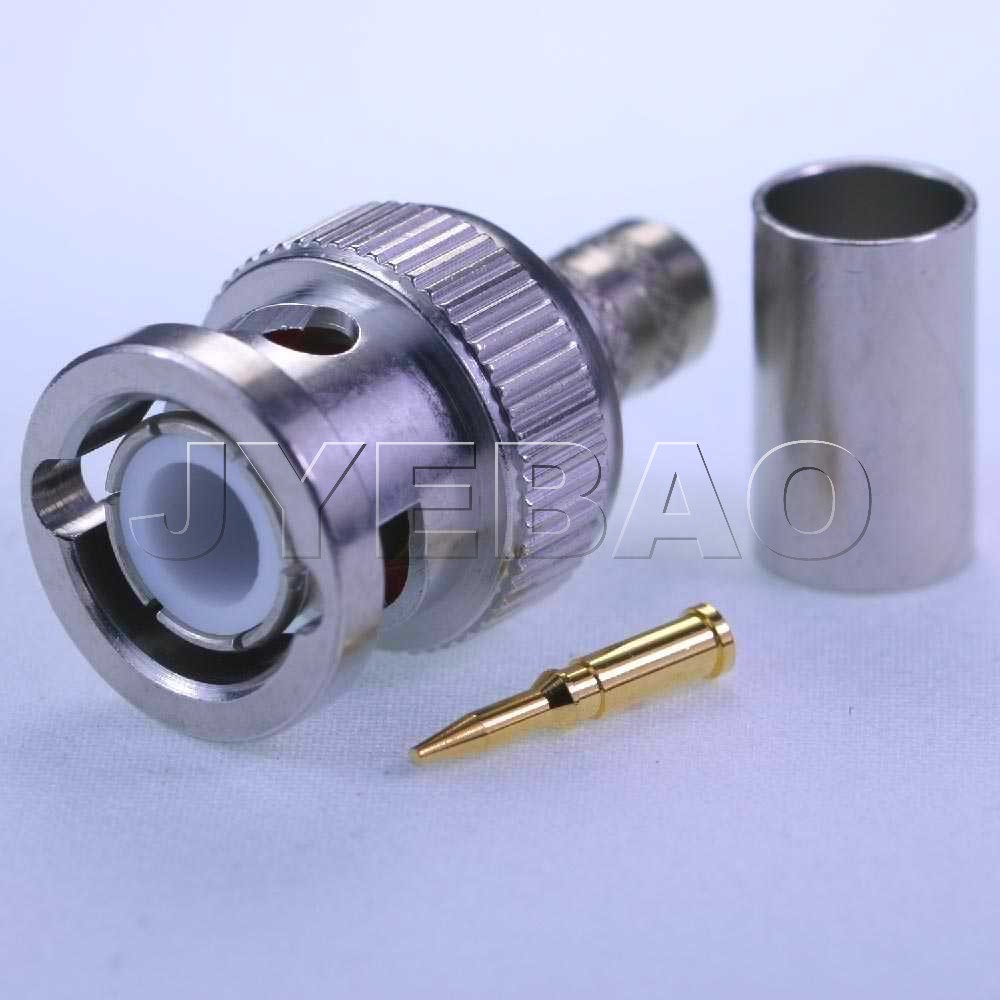

JYEBAO BNC3100-L240 – BNC Plug (Male) Crimp Connector for LMR240 / JBY240 (50 Ω, DC–1.9 GHz)
The BNC3100-L240 is a straight BNC plug (male) coax connector designed for
crimp termination onto LMR240 / JBY240 class coax cable.
It’s a practical choice for building robust BNC patch leads where you want the handling/attenuation benefits of a ~0.240" OD cable, while keeping the fast bayonet BNC interface.
Common use cases
- LMR240 / JBY240 BNC patch leads: build durable RF cables for benches, comms racks, or field kits.
- Instrumentation interconnects: terminate mid-size coax to BNC equipment ports (signal sources, counters, general RF gear).
- Antenna & RF distribution runs (where BNC is required): use LMR240-class cable then finish with BNC on the equipment end.
Key features
- Series: BNC
- Gender: Plug (Conventional Male)
- Termination: Crimp (centre pin + ferrule)
- Compatible cable: LMR240 / JBY240
- Impedance: 50 Ω
- Frequency range: DC–1.9 GHz
- VSWR: ≤ 1.2 (DC–1.9 GHz)
- RoHS: Compliant
Electrical specifications (datasheet)
| Impedance | 50 Ω |
|---|---|
| Frequency range | DC to 1.9 GHz |
| VSWR | ≤ 1.2 (DC to 1.9 GHz) |
| Insertion loss | ≤ 0.1 × f(GHz) dB |
| Insulation resistance | ≥ 5000 MΩ |
| Contact resistance (inner) | ≤ 1.5 mΩ |
| Contact resistance (outer) | ≤ 1.0 mΩ |
| Dielectric withstand (sea level) | 1500 V rms |
| Working voltage (sea level) | 500 V rms |
Mechanical & environmental (datasheet)
- Interface: MIL-STD-348B
- Recommended coupling torque: 0.6 to 2.5 in-lb
- Durability: ≥ 500 mating cycles
- Temperature range: -65°C to +165°C
Crimp tooling (datasheet)
- Crimping tool: CRT-1 or CRT-2
- Crimp insert: INSERT-E
Cable assembly (from instruction sheet)
- Strip dimensions: 16 mm / 8.1 mm / 4.7 mm (strip as shown in drawing)
- Slide ferrule onto cable.
- Fit centre pin onto the centre conductor and solder or crimp (if crimping, use the square 1.6 mm section of INSERT-E).
- Loosen braid and slide connector body into place.
- Slide ferrule up to the connector and crimp (use the hex 6.5 mm section of INSERT-E).
Materials & plating (datasheet)
- Body / coupling nut: Brass (Tin-Zinc-Copper alloy plating over copper underplate)
- Contact pin: plated (gold over nickel-phosphorus alloy over copper underplate)
- Insulator: PTFE (Teflon)
- Gasket: Silicone
Downloads
| Weight | 0.1 g |
|---|
