BNC3100-9179 BNC Plug (Male) Right Angle Crimp Connector for RG179 – 75Ω, DC–2GHz, VSWR ≤1.2
£3.32 Ex Vat
9 in stock
Product Description

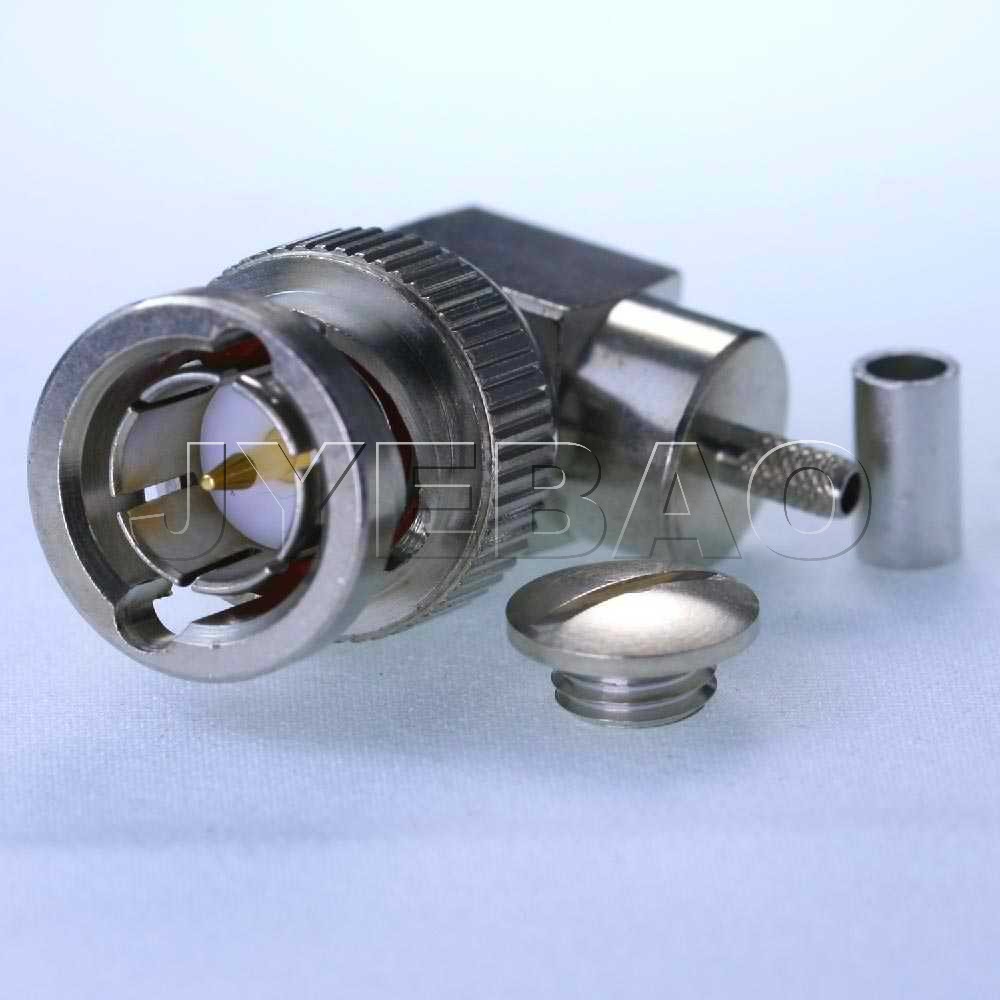

JYEBAO BNC3100-9179 – 75Ω BNC Plug (Male) Right Angle Connector for RG179 (DC–2 GHz)
The BNC3100-9179 is a 75 Ω right-angle BNC plug (male) connector designed for
RG179 / RG179-FEP coax. The right-angle body reduces bend stress and is ideal for tight spaces behind instruments, racks, and enclosures.
Common use cases
- 75Ω RF / IF interconnects: build RG179 patch leads where controlled impedance matters.
- Video & instrumentation cabling: BNC is widely used in 75Ω systems; confirm your bandwidth and connector rating for your application (this part is specified to DC–2 GHz).
- Dense panel wiring: right-angle geometry helps routing and reduces strain on the connector and cable.
Key features
- Series: BNC
- Gender: Plug (Conventional Male)
- Geometry: Right Angle
- Impedance: 75 Ω
- Frequency range: DC–2 GHz
- VSWR: ≤ 1.2 (DC–2 GHz)
- Compatible cables: RG179, RG179-FEP
- Tooling: CRT-1 or CRT-2 with INSERT-A
- RoHS: Compliant
Electrical specifications (datasheet)
| Impedance | 75 Ω |
|---|---|
| Frequency range | DC to 2 GHz |
| VSWR | ≤ 1.2 (DC to 2 GHz) |
| Insertion loss | ≤ 0.1 × f(GHz) dB |
| Insulation resistance | ≥ 5000 MΩ |
| Contact resistance (inner) | ≤ 1.5 mΩ |
| Contact resistance (outer) | ≤ 1.0 mΩ |
| Dielectric withstand (sea level) | 1500 Vrms |
| Working voltage (sea level) | 500 Vrms |
Mechanical & environmental (datasheet)
- Interface: MIL-STD-348B
- Recommended coupling torque: 0.6 to 2.5 in-lb
- Coupling nut retention force: ≥ 101.2 lbs
- Contact captivation (axial): ≥ 6.1 lbs
- Durability: ≥ 500 mating cycles
- Temperature range: -65°C to +165°C
Materials & plating (datasheet)
- Body / nut / ferrule / barrel / washer / coupling nut: Brass, Tin-Zinc-Copper alloy plating (100 µin) over copper (50 µin)
- Contact pin: Brass, Gold (4 µin) over Nickel-Phosphorus alloy (80 µin) over copper (20 µin)
- Insulator: PTFE (Teflon)
- Gasket: Silicone
- Weight: 18.55 g
Cable assembly (from official instruction sheet)
- Strip dimensions: 15.5 mm / 10.5 mm / 2.7 mm (strip as shown)
- Slide ferrule onto the cable.
- Wrap the braid upwards as shown.
- Fit the centre conductor onto the contact pin and solder at the indicated point.
- Slide the ferrule up and crimp (use the 3.3 mm / 0.130" hex section of INSERT-A).
- Finally screw the nut onto the connector body.
RF plot (S11 marker example)
- S11 @ 2.0000 GHz: -21.93 dB (from plot)
