BNC3100-0059 BNC Plug (Male) Crimp Connector for RG59 – 75Ω, DC–500MHz, VSWR ≤1.2

Product Description

JYEBAO BNC3100-0059 – 75 Ω BNC Plug (Male) Crimp Connector for RG59 (DC–500 MHz)

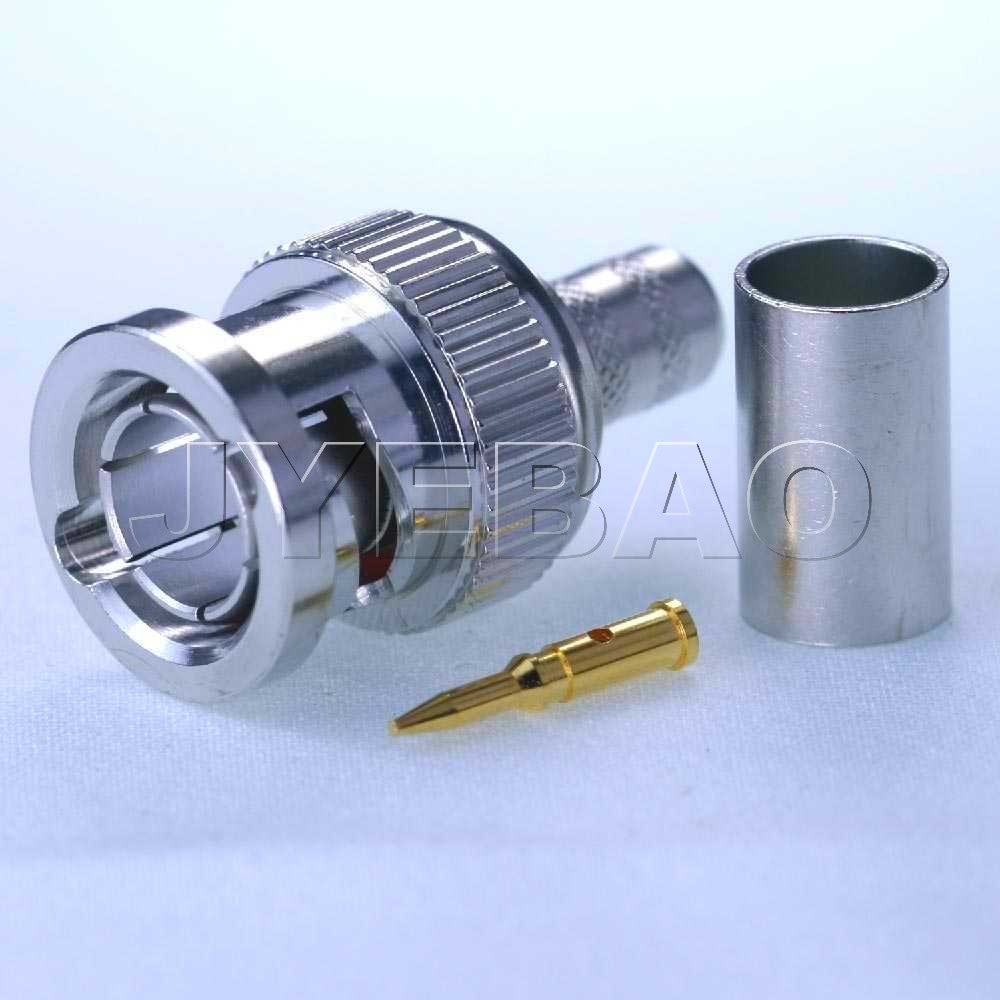

The BNC3100-0059 is a 75 Ω straight BNC plug (male) connector designed for terminating
RG59 coax using a production-friendly crimp-style build (body + centre pin + ferrule).
It’s commonly used in 75 Ω systems such as video/CCTV and general BNC interconnects where RG59 is standard.

Common use cases

• Video / CCTV coax: Build or repair RG59 BNC leads for analogue video and CCTV installations.
• 75 Ω patch leads: Short RG59 jumpers for racks, panels and equipment interconnects.
• Service & maintenance: Fast re-termination of damaged RG59 cable ends with repeatable crimp tooling.

Key features

• Series: BNC
• Gender: Plug (Conventional Male)
• Geometry: Straight
• Cable type: RG59
• Impedance: 75 Ω
• Frequency range: DC–500 MHz
• VSWR: ≤ 1.2 (DC–500 MHz)
• Interface: MIL-STD-348B
• RoHS: Compliant

Electrical specifications (datasheet)

Mechanical (datasheet)

• Recommended coupling torque: 0.6 to 2.5 in-lb
• Durability: 500 mating cycles (datasheet value)
• Weight: 9.04 g

Crimp tooling & assembly (datasheet)

• Crimp tool: CRT-1 or CRT-2
• Crimp insert: INSERT-E
• Centre pin can be crimped or soldered (datasheet assembly note), then ferrule is crimped to finish.
• Insert reference: square 1.6 mm section for pin; hex 6.5 mm section for ferrule (per instruction sheet).

Materials & plating (datasheet)

• Body / coupling nut / ferrule: Brass, Tin-Zinc-Copper alloy plating over copper
• Contact pin: Brass, Gold plating over Nickel-Phosphorus alloy over copper
• Insulator: PTFE (Teflon)
• Gasket: Silicone

Downloads

Datasheet – BNC3100-0059 (PDF)

RFShopUK – Other BNC Products </strong
