Grid Antenna 5.8 GHz 27 dBi (GA-5800-27)
Original price was: £79.74.£39.87Current price is: £39.87. Ex Vat
4 in stock
Product Description
Engineered for spread-spectrum applications, this antenna uses precision feed-to-reflector geometry to maintain the modelled pattern and impedance. It delivers high gain and long working distance in a lightweight, compact form with good wind resistance.
Key features
- Optimised for spread-spectrum systems
- Feed/reflector geometry matched to design plot
- High gain for extended range
- Lightweight, compact construction
- Robust wind resistance
Radiation pattern

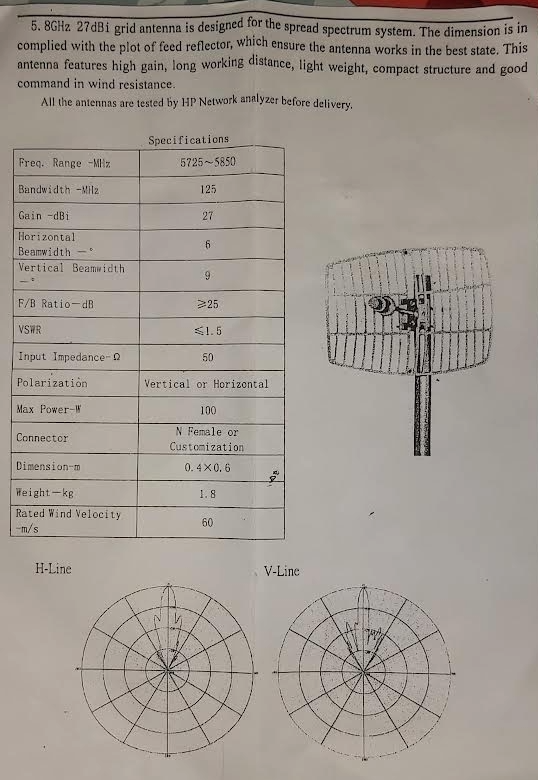

Measured polar plots: H-Line and V-Line illustrate the main lobe shape and sidelobe behaviour for horizontal and vertical cuts through the beam.
Specifications
| Frequency Range: | 5725~5850 MHz |
| Gain: | 27 dBi |
| F/B Ratio: | 25 dB |
| V.S.W.R: | 1.5 |
| Return Loss | > 14dB |
| Connector | N female |
| 3dB beamwidth | 6 deg (H) x 9 deg (V) |
| Weight | 1.8 kg |
| Size | 600 x 400mm |
| Wind rating | 60m/sec |
Manufacturer
Hwa Yao Technologies Co.,Ltd
https://rfshop.co.uk/wp-content/uploads/2020/06/GA-5800-27.png
https://rfshop.co.uk/wp-content/uploads/2020/06/GA-5800-27.doc
