Right-Angle Dipole Antenna, RP-TNC Plug, 900–930 MHz, 2 dBi – GSM-9093-2-T60

Product Description

Right-Angle Dipole Antenna, RP-TNC Plug, 900–930 MHz, 2 dBi – GSM-9093-2-T60

Part Number: GSM-9093-2-T60

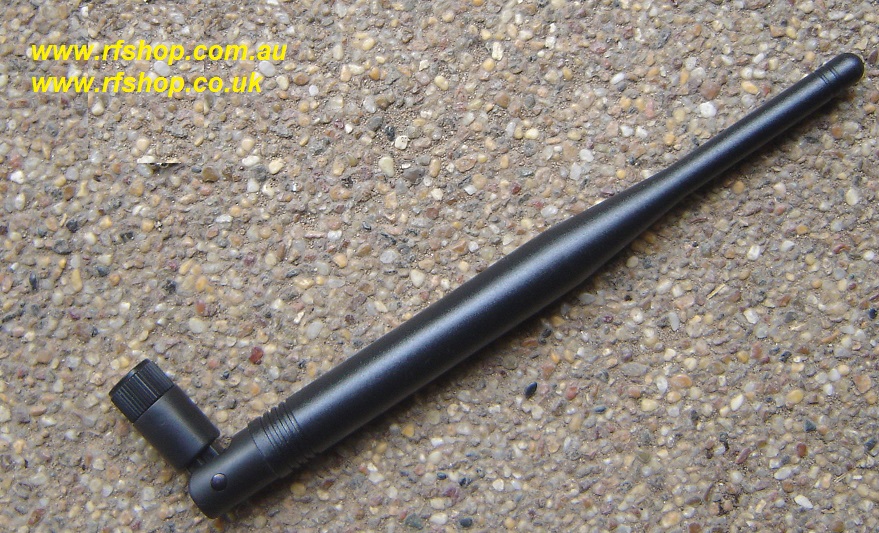

The GSM-9093-2-T60 is a small, right-angle “rubber ducky” antenna tuned for the 900–930 MHz band. It uses a TNC reverse-polarity (RP-TNC) plug with female pin, as commonly found on some wireless and cellular equipment. The right-angle body keeps the antenna close to the device, which is handy on enclosures, radios and test gear where a straight whip would stick out too far.

This antenna is designed for 50 Ω systems and provides around 2 dBi of omnidirectional gain – a small but useful boost over tiny board antennas. At 900 MHz it’s suitable for classic GSM / LTE 900 as well as other narrowband and ISM applications within the 900–930 MHz range.

• Right-angle “rubber ducky” style dipole antenna
• Connector: TNC reverse-polarity plug (female pin, RP-TNC)
• Impedance: 50 Ω
• Frequency band: 900–930 MHz
• Nominal gain: 2 dBi omnidirectional
• Compact on-device form factor – ideal where space is tight

Good use-cases

• GSM / LTE 900 MHz modems and gateways with RP-TNC antenna ports
• 900 MHz ISM / telemetry radios and remote monitoring equipment
• Test fixtures and lab setups operating around 900 MHz
• Industrial and M2M devices using 900–930 MHz in a 50 Ω system

Compatibility notes (simple check)
This antenna is suitable if:

• Your device has a 50 Ω RP-TNC jack (TNC body with reversed centre contact – the jack on the device takes a female pin), and
• It operates in the 900–930 MHz band (e.g. GSM / LTE 900 or 900 MHz ISM).

It will not mate correctly with standard (non-reverse-polarity) TNC connectors. For equipment with SMA, RP-SMA, N-type or other connector types, use a suitable pigtail or adapter from RP-TNC to your device’s port.
