SMA Plug to Plug RF Adapter 50 Ohm – Right Angle

Product Description

Overview

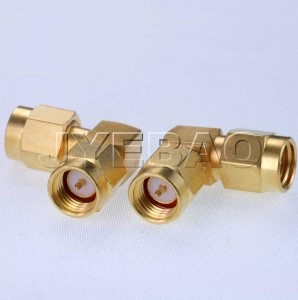

The AL-A3A3 is a JyeBao-manufactured SMA plug-to-plug right-angle in-series adapter. Both ends are SMA plugs (male, pin contact), mated at 90° for low-profile coupling in space-constrained installations — panel-mounted equipment, stacked rack enclosures, test-bench feedthroughs, and any situation where a straight cable run collides with the chassis or a neighbouring connector.

Specifications (from JyeBao datasheet)

• Standard: MIL-STD-348B
• Mechanically compatible with: 2.92 mm and 3.5 mm interfaces
• Impedance: 50Ω
• Frequency range: DC to 10 GHz
• VSWR: ≤1.2:1 (DC to 10 GHz)
• Insertion loss: ≤0.06 × √f(GHz) dB
• Insulation resistance: ≥5,000 MΩ
• Dielectric withstanding voltage: 1,500 V rms (sea level)
• Working voltage: 500 V rms (sea level)
• Recommended coupling torque: 4 in-lbs (approx. 0.45 Nm)
• Durability: ≥100 mating cycles
• Temperature range: −65°C to +165°C
• Body, contact pin, coupling nut: Brass, gold-plated (over nickel-phosphorus over copper)
• Insulator: PTFE
• Weight: 6.68 g · Hex: 8 mm (0.315 in)
• RoHS: Compliant
• Manufacturer: JyeBao

Applications

• Panel-mounted and rack-mounted equipment where a straight SMA cable entry would collide with the chassis
• Test and bench work where a 90° turn reduces cable strain at the instrument port
• RF tidy-up inside enclosures — routing cables around internal obstructions
• Prototype and development setups where permanent cable dressing isn’t practical

Cross-series mating

The AL-A3A3 is mechanically compatible with both 2.92 mm and 3.5 mm connectors at both ends — useful in mixed test-equipment environments, though electrical performance is specified at the 10 GHz SMA bandwidth. For higher-frequency work (18 GHz and above), use a dedicated 2.92 mm or 3.5 mm adapter rated for the full bandwidth.

Torque and handling

Recommended coupling-nut torque is 4 in-lbs (approximately 0.45 Nm). Use a calibrated SMA torque wrench where repeatable connections matter. Over-torquing a right-angle adapter stresses the 90° transition and can affect VSWR performance; under-torquing leaves the joint susceptible to intermittent contact and RF leakage.

Grade and suitability

This is a commercial-grade adapter rated for ≥100 mating cycles. It’s well-suited to permanent or semi-permanent installations, routine bench work, and prototype assembly. For high-cycle test benches (VNA calibration fixtures, production test jigs, or any setup with frequent reconnection), specify a dedicated precision test adapter — those are rated for 5,000+ cycles and use hardened stainless-steel coupling nuts.

UK stock, dispatch and certification

Held in UK stock. Same-day dispatch for orders received before 12pm. A Certificate of Conformance is available on request for laboratory, defence and regulated applications — please mention your requirement at the time of order.

Download the JyeBao AL-A3A3 datasheet (PDF) →
