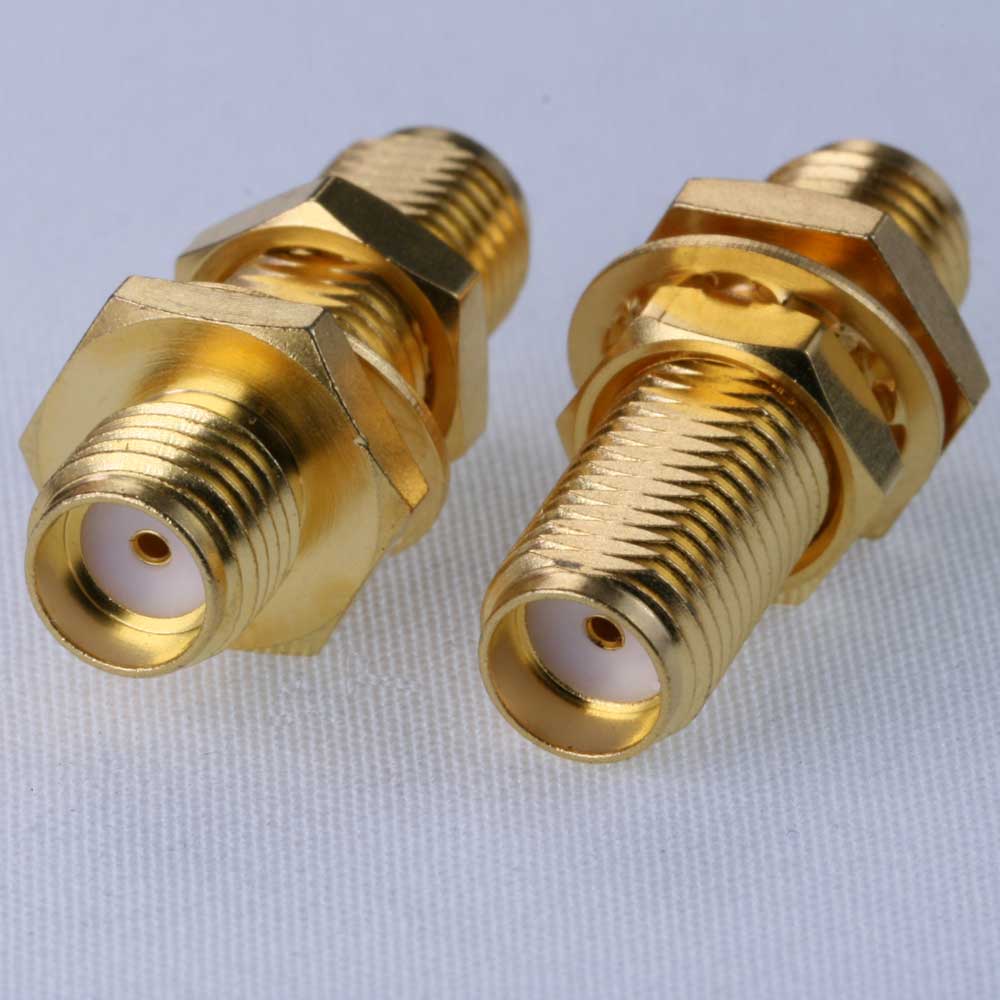

Adaptor, SMA Jack (Female Pin) to SMA Jack (Female Pin), Bulkhead, DC–18 GHz – AD-A8A8-BF

Product Description

Adaptor, SMA Jack to SMA Jack, Bulkhead, DC–18 GHz – AD-A8A8-BF

Part Number: AD-A8A8-BF

The AD-A8A8-BF is an in-series SMA jack ↔ SMA jack adaptor with an integral bulkhead for panel feed-through. It’s a standard-polarity SMA interface (mechanically compatible with MIL-STD-348B, also mates with 3.5 mm/2.92 mm as per spec), rated DC–18 GHz with VSWR ≤ 1.2 and 50 Ω impedance. Typical insertion loss is low, specified as ≤ 0.04 × √f(GHz) dB on the datasheet.

• Interface: SMA jack (conventional female) to SMA jack (conventional female)
• Mounting: bulkhead/panel (supplied with nut & washer on most variants)
• Impedance: 50 Ω
• Frequency range: DC–18 GHz
• Max VSWR: ≤ 1.2 (DC–18 GHz)
• Insertion loss: ≤ 0.04 × √f(GHz) dB (typ.)
• Insulation resistance: ≥ 5000 MΩ
• DWV / Working voltage (sea level): 1500 Vrms / 500 Vrms
• Torque (recommended / proof): 4 in-lb / 5.3 in-lb
• Durability: ≥ 100 matings
• Temperature range: −65 °C to +165 °C
• Materials / finish (common variant): brass, gold-plated (stainless passivated version exists as ADS-A8A8-BF-18)

Typical uses

• Bulkhead feed-through on enclosures and panels
• Joining two SMA plug cables or pigtails
• Test fixtures needing SMA jack on both sides of a panel
