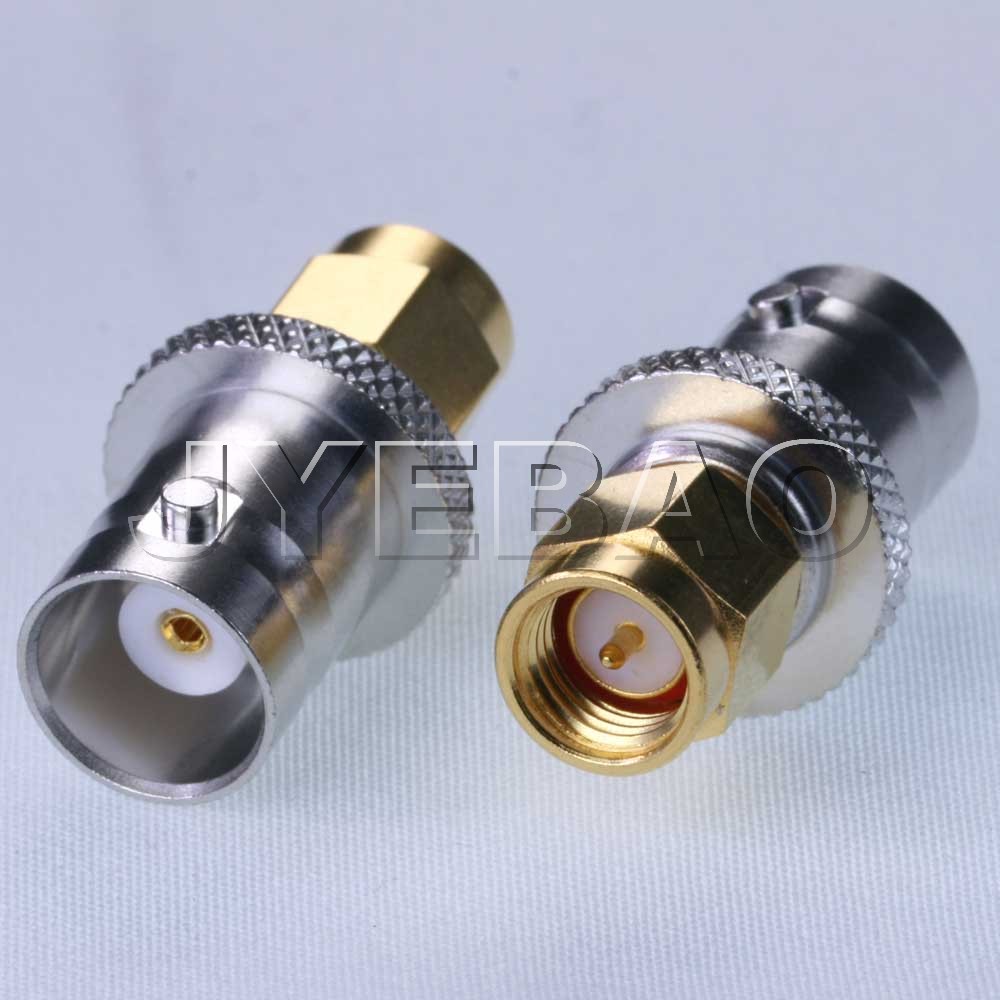

SMA Plug (Male Pin) ↔ BNC Jack (Female) Adapter — 50 Ω, DC–8 GHz, VSWR ≤ 1.2 — Jyebao AD-A3B8

Between-series SMA plug to BNC jack adapter. 50 Ω, DC–8 GHz, VSWR ≤ 1.2. Brass bodies (SMA side gold-plated, BNC side tin-zinc-copper), PTFE dielectric, gold-plated contact.

View More

£17.63 Ex Vat

3 in stock

Total:
Each:

Product Description

Compact, straight RF adapter transitioning SMA plug (male pin) to BNC jack (female) for test gear, radios and lab benches. Rated DC–8 GHz with VSWR ≤ 1.2 and low insertion loss.

Why you’ll like it

  • Wideband matching: DC–8 GHz, VSWR ≤ 1.2 keeps reflections down across common bands.
  • Low loss: IL ≤ 0.05 × √f(GHz) dB (per adapter).
  • Durable build: Brass bodies; SMA side gold-plated over nickel, BNC side tin-zinc-copper plated; PTFE insulator; gold-plated phosphor-bronze contact.
  • Lab-friendly mechanics: MIL-STD-348 interface compatibility; typical weight 7.7 g.

Typical uses

  • Join SMA-terminated leads to BNC-female instruments
  • Quick adapter for spectrum/network analysers, SDRs, and RF benches

Part Number: Jay Bao AD-A3B8 , DATASHEET
