| RFShop UK

Quick view

1.13

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 450mm 1.13mm

(0)

Cable Assembly, SMA Plug RP to SMA Jack RP, 1.13mm cable, 0.45M,

Part Number: A60A95-1.13-450,

Connector 1: SMA

Reverse Polarity Plug (Female Inner Pin),

Connector 2:SMA

Reverse Polarity Jack (Male Inner Pin),

Cable Type: 1.13mm * (Covered in Protective layer of 18mm Heat Shrink Tubing)

Length: 0.45m,

*The 1.13 Cable in this assembly is designed to fit through small spaces such a window frame, to enable a signal through a closed window. The Construction is a flat ‘tape like’ cable.

RFShopUK-A60A95-1.13-300

Cable Data

Construction:

Inner Conductor Silver Plated Copper 7/0.08
Dielectric FEP 0.68
Shield Silver Plated Copper 0.9
Jacket FEP (Grey) 1.13

Electrical Characteristics:

Impedance : 50Ω ±3Ω
Capacitance : 98pF/m
Velocity of Propagation : 69%
Max. Operating Frequency : 6GHz
Dielectric Strength : 500V AC / Minute
Rating Current : 1.5A
Minimum Bend Radius : 4.5mm
Spark Test : 2500VRMS
Operating Temp. Range : -55°C to +155°C

A60A95-1.13-450 £8.26 - £10.33 Ex Vat

Avaibility: 21 in stock (can be backordered)

Quick view

200 series

SMA Plug to SMA Jack RF Cable Assembly 5m 200 Series – Bulkhead

(0)

Part Number: A30A85-200-5000

A30A85-200-5000 £16.25 - £20.31 Ex Vat

Avaibility: 105 in stock (can be backordered)

Quick view

200 series

SMA Plug to SMA Jack RF Cable Assembly 2m 200 Series – Bulkhead

(0)

Part Number: A30A85-200-2000

A30A85-200-2000 £12.38 - £15.48 Ex Vat

Avaibility: 3 in stock

Quick view

1.13

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 300mm 1.13mm

(0)

Cable Assembly, SMA Plug RP to SMA Jack RP, 1.13mm cable, 0.3M,

Part Number: A60A95-1.13-300,

Connector 1: SMA

Reverse Polarity Plug (Female Inner Pin),

Connector 2:SMA

Reverse Polarity Jack (Male Inner Pin),

Cable Type: 1.13mm * (Covered in Protective layer of 18mm Heat Shrink Tubing)

Length: 0.3m,

*The 1.13 Cable in this assembly is designed to fit through small spaces such a window frame, to enable a signal through a closed window. The Construction is a flat ‘tape like’ cable.

RFShopUK-A60A95-1.13-450

Cable Data

Construction:

Inner Conductor Silver Plated Copper 7/0.08
Dielectric FEP 0.68
Shield Silver Plated Copper 0.9
Jacket FEP (Grey) 1.13

Electrical Characteristics:

Impedance : 50Ω ±3Ω
Capacitance : 98pF/m
Velocity of Propagation : 69%
Max. Operating Frequency : 6GHz
Dielectric Strength : 500V AC / Minute
Rating Current : 1.5A
Minimum Bend Radius : 4.5mm
Spark Test : 2500VRMS
Operating Temp. Range : -55°C to +155°C

A60A95-1.13-300 £7.34 - £9.18 Ex Vat

Avaibility: 33 in stock (can be backordered)

Quick view

200 series

SMA Plug to SMA Plug RF Cable Assembly 1.5m 200 Series

(0)

Part Number: A30A30-200-1500

A30A30-200-1500 £12.53 - £15.66 Ex Vat

Avaibility: 10 in stock (can be backordered)

RP SMA Extension Lead, 300mm A60A95-316-300-0

Quick view

Bulkhead

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 300mm RG316

(0)

RP SMA Extension Lead, 300mm A60A95-316-300

A60A95-316-300 £10.98 - £13.73 Ex Vat

Avaibility: 26 in stock

RFShopUK- Fakra-ZP-02

Quick view

Cable Assemblies

SMA Jack to Fakra Plug RF Cable Assembly 300mm RG58

(0)

Cable Assembly, SMA Jack to Fakra Plug , RG58, 300mm,

Part Number: A80Fakra30-58-300

Coaxial Cable Assembly,

1: SMA

Jack (Conventional Female/ Socket),

2: Fakra (Universal-Sea Blue) Water Blue,

Plug (SMB Plug Standard),

RG58 Cable,

300mm Length,

RFShopUK-CH-AJ-200

Bespoke Cable Assemblies available. Contact us directly for a free quote.

A80Fakra30-58-300 £11.54 - £14.43 Ex Vat

Avaibility: 45 in stock

Quick view

Bulkhead

SMA Plug to SMA Jack RF Cable Assembly 300mm RG316 – Bulkhead

(0)

Part Number: A30A85-316-300

A30A85-316-300 £11.43 - £14.29 Ex Vat

Avaibility: 24 in stock

RFShop other SMA Assemblies

Quick view

200 series

SMA Plug to SMA Plug RF Cable Assembly 350mm 200 Series

(0)

Cable Assembly, SMA Plug to SMA Plug, 200 series, 35cm

Product Code:A30A30-200-350

SMA Plug (Conventional Male)

195/low loss 200 series 0.6 dB per metre at 2.5GHz

A30A30-200-350 £11.06 - £13.82 Ex Vat

Avaibility: 4 in stock (can be backordered)

RP SMA Extension Lead 5m (ACC-10314-03 equivalent) A60A95-200-5000 A60A95-200-5000-0

Quick view

200 series

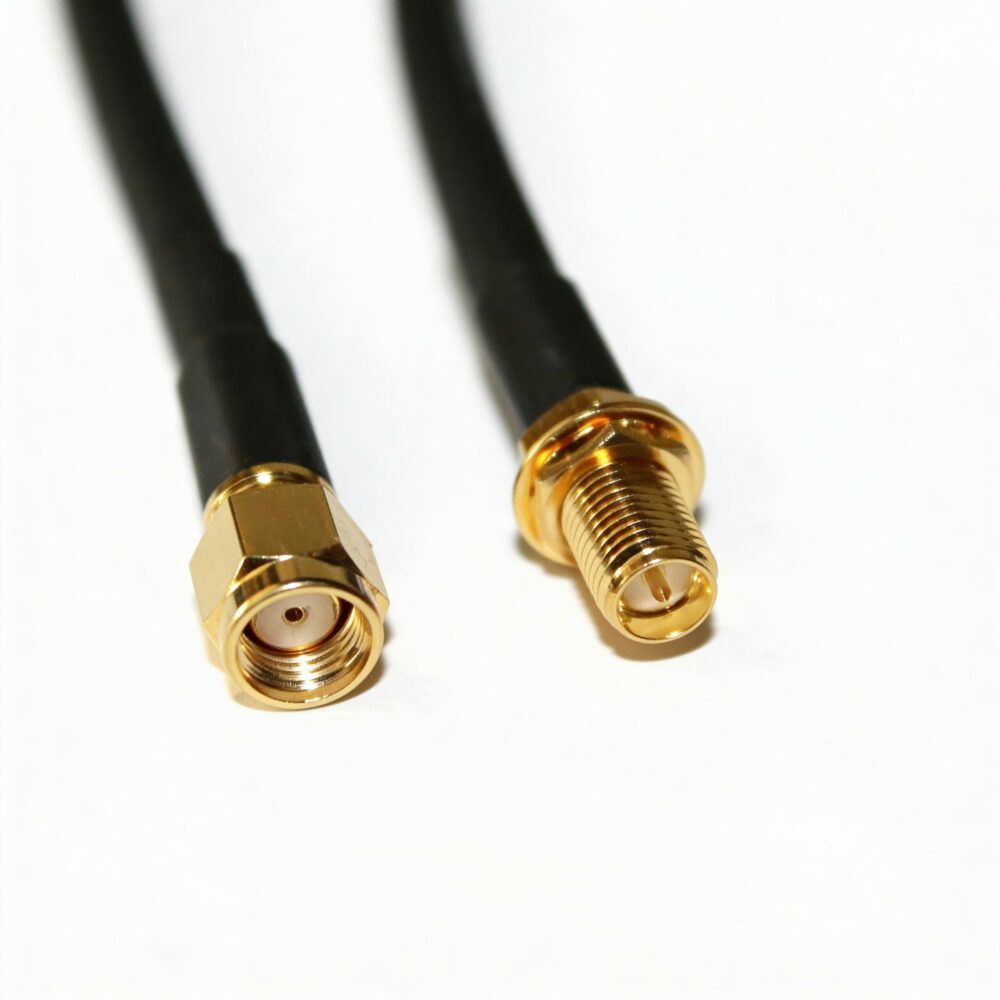

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 5m 200 Series

(0)

RP SMA Extension Lead 5m (ACC-10314-03 equivalent) A60A95-200-5000

A60A95-200-5000 £17.21 - £21.51 Ex Vat

Avaibility: 10 in stock

A30T60-195/200-2000, SMA conv male pin, RP-TNC (female pin), 195 Cable, Length = 2m, loss at 2.45GHz < 1.8dB-0

Quick view

200 series

SMA Plug to RP-TNC Plug RF Cable Assembly 2m 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to TNC RP Plug, 200 Series, 2M, A30T60-200-2000

SMA Plug (Conventional Male) to TNC RP Plug (Female Pin), 200 series Cable, 2M

Part Number: A30T60-200-2000

Cables available in any length. Please email: sales@rfshop.co.uk for prices and delivery times.

A30T60-200-2000 £12.51 - £15.64 Ex Vat

Avaibility: 9 in stock

Quick view

200 series

SMA Plug to SMA Jack RF Cable Assembly 1m 200 Series – Bulkhead

(0)

Part Number: A30A85-200-1000

A30A85-200-1000 £11.10 - £13.87 Ex Vat

Avaibility: 11 in stock

Quick view

Cable Assemblies

SMA Plug to SMA Plug RF Cable Assembly 200mm RG316

(0)

SMA male Plug, SMA male Plug, RG316 Cable, Length = 200mm

A30A30-316-200 £11.22 - £14.03 Ex Vat

Avaibility: 10 in stock

Example Datasheet-SMA Plug

Quick view

200 series

SMA Plug to N Plug RF Cable Assembly 700mm 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to N Plug, 200 Series Cable, 0.7M, A30N30-200-700

Part Number: A30N30-200-700

SMA Plug (Conventional Male) to N Plug (Conventional Male), LMR200

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)

Example Datasheet-N Plug

Example Datasheet-200 Series Cable

A30N30-200-700 £11.72 - £14.65 Ex Vat

Avaibility: 2 in stock (can be backordered)

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 700mm 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 Series Cable, 0.70m A60N30-200-700

Part Number: A60N30-200-700

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 700mm
Loss: ~0.7dB @ 2.4GHz

A60N30-200-700 £13.18 - £16.48 Ex Vat

Avaibility: 2 in stock

Quick view

Bulkhead

SMA Jack to MMCX Right Angle Plug RF Cable Assembly 150mm RG316

(0)

Part Number: A85MMCX39-316-150

A85MMCX39-316-150 £11.70 - £14.62 Ex Vat

Avaibility: 9 in stock

Quick view

200 series

RP-SMA Plug to RP-SMA Bulkhead Jack RF Cable Assembly 3m 200 Series

(0)

Part Number: A60A95-200-3000

A60A95-200-3000 £15.37 - £19.21 Ex Vat

Avaibility: 29 in stock

RP SMA Extension Lead, 0.5m A60A90-200-500-0

Quick view

200 series

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 0.5m 200 Series

(0)

Part Number: A60A90-200-500

A60A90-200-500 £11.41 - £14.26 Ex Vat

Avaibility: 2 in stock

Quick view

Cable Assemblies

SMA Plug to SMA Plug RF Cable Assembly 1.5m RG316

(0)

SMA Male cable assembly , RG316, 1.5 mtrs

A30A30-316-1500 £12.83 - £16.04 Ex Vat

Avaibility: 6 in stock

Quick view

240 series

SMA Plug to SMA Jack RF Cable Assembly 10m 240 Series – Bulkhead

(0)

Part Number: A30A85-240-10000

A30A85-240-10000 £29.11 - £36.39 Ex Vat

Avaibility: 8 in stock

RFShop other SMA Assemblies

Quick view

200 series

SMA Plug to SMA Plug RF Cable Assembly 500mm 200 Series

(0)

Cable Assembly, SMA Plug to SMA Plug, 200 series, 50cm

Product Code:A30A30-200-500

SMA Plug (Conventional Male)

195/low loss 200 series 0.6 dB per metre at 2.5GHz

A30A30-200-500 £11.25 - £14.06 Ex Vat

Avaibility: 20 in stock

Quick view

200 series

SMA Plug to RP-TNC Plug RF Cable Assembly 5m 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to TNC RP Plug, 200 Series, 5M, A30T60-200-5000

SMA Plug (Conventional Male) to TNC RP Plug (Female Pin), 200 series Cable, 5M

Part Number: A30T60-200-5000

Cables available in any length. Please email: sales@rfshop.co.uk for prices and delivery times.

A30T60-200-5000 £16.38 - £20.47 Ex Vat

Avaibility: 10 in stock

Quick view

200 series

SMA Plug to N Plug RF Cable Assembly 2m 200 Series

(0)

Cable Assembly, SMA Plug to N Plug, 200 series, 2M, A30N30-200-2000

Part Number: A30N30-200-2000

Connector 1: SMA Plug (Conventional Male)

Connector 2: N Plug (Conventional Male)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 2000mm

RFShopUK- Other A30N30 Assemblies

All Assemblies can be made to specific requirements, for a quote please contact us directly.

A30N30-200-2000 £13.39 - £16.74 Ex Vat

Avaibility: 40 in stock (can be backordered)

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 350mm 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 0.35m A60N30-200-350

Part Number: A60N30-200-350 (Previously N30A60-200-350)

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 350mm

A60N30-200-350 £12.73 - £15.91 Ex Vat

Avaibility: 61 in stock

Quick view

Bulkhead

U.FL to RP-SMA Jack RF Cable Assembly 400mm RG178

(0)

Part Number: A95UFL-RG178-400 , Connector 1: U.FL
Connector 2: Bulkhead RP SMA Jack (Male Pin)
Cable Type: RG178
Length: 400mm
similar to R-134G7210200CA

A95UFL-178-400 £13.68 - £17.10 Ex Vat

Avaibility: 12 in stock

Quick view

200 series

SMA Plug to SMA Jack RF Cable Assembly 3m 200 Series – Bulkhead

(0)

Part Number: A30A85-200-3000

A30A85-200-3000 £13.67 - £17.09 Ex Vat

Avaibility: 17 in stock

Quick view

200 series

SMA Plug to SMA Plug RF Cable Assembly 4m 200 Series

(0)

Part Number: A30A30-200-4000

A30A30-200-4000 £15.75 - £19.69 Ex Vat

Avaibility: 5 in stock

Quick view

200 series

SMA Plug to SMA Plug RF Cable Assembly 1m 200 Series

(0)

Part Number: A30A30-200-1000

A30A30-200-1000 £11.89 - £14.86 Ex Vat

Avaibility: 8 in stock (can be backordered)

Example Datasheet-SMA Plug

Quick view

200 series

SMA Plug to N Plug RF Cable Assembly 3m 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to N Plug, 200 Series Cable, 3M, A30N30-200-3000

Part Number: A30N30-200-3000

SMA Plug (Conventional Male) to N Plug (Conventional Male), LMR200

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)

Example Datasheet-N Plug

Example Datasheet-200 Series Cable

A30N30-200-3000 £14.68 - £18.35 Ex Vat

Avaibility: 20 in stock (can be backordered)

Quick view

195 series

RP-SMA Plug to N Plug RF Cable Assembly 750mm 195 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 195 Series Cable, 0.75m A60N30-195-750

Part Number: A60N30-195-750

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: Low Loss 195 Series 0.45dB per mtr at 2.5GHz (diameter ~5mm)
Length: 0.75m

A60N30-195-750 £12.33 - £15.41 Ex Vat

Avaibility: 10 in stock

Quick view

Bulkhead

SMA Jack to U.FL RF Cable Assembly 300mm RG178 – O-Ring

(0)

Part Number: A85oUFL-178-300

SMA Jack (Conventional Female), Bulkhead (O-RING), to UFL, RG178, 300mm, A85oUFL-178-300

Cable Type: RG178
Length: 300mm
DC-6GHz

A85oUFL-178-300 £13.04 - £16.30 Ex Vat

Avaibility: 60 in stock

Quick view

Cable Assemblies

SMA Plug to SMA Plug RF Cable Assembly 1.2m RG316

(0)

Part Number: A30A30-316-1200

A30A30-316-1200 £12.34 - £15.43 Ex Vat

Avaibility: 8 in stock

Quick view

200 series

N Jack to SMA Plug RF Cable Assembly 700mm 200 Series

(0)

Part Number: N80A30-200-700-1 , N jack, SMA plug, 200 Cable, Loss at 2.45 GHz < 1.1 dB, Length = 0.7m

N80A30-200-700 £11.54 - £14.42 Ex Vat

Avaibility: 22 in stock

RP SMA Extension Lead, 7m A60A90-200-7000-0

Quick view

200 series

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 3m 200 Series

(0)

Part Number: A60A90-200-3000-1 , Connector 1: RP SMA Plug (Female pin)
Connector 2: RP SMA Jack (Male pin)
Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz
Length: 3m

A60A90-200-3000 £14.63 - £18.29 Ex Vat

Avaibility: 9 in stock

Quick view

Bulkhead

SMA Jack to MMCX Right Angle Plug RF Cable Assembly 300mm RG316

(0)

Part Number: A85MMCX39-316-300

A85MMCX39-316-300 £11.70 - £14.62 Ex Vat

Avaibility: 15 in stock

RP SMA Extension Lead, 1m (ACC-10314-01 equivalent) A60A95-200-1000-0

Quick view

200 series

RP-SMA Plug to RP-SMA Bulkhead Jack RF Cable Assembly 1m 200 Series

(0)

Part Number: A60A95-200-1000

A60A95-200-1000 £12.06 - £15.07 Ex Vat

Avaibility: 20 in stock

SMA Plug (Male pin) to SMA Plug Right angle (Male pin), RG316 cable, 200mm A30A39-316-200-0

Quick view

Cable Assemblies

SMA Plug to SMA Right Angle Plug RF Cable Assembly 200mm RG316

(0)

Part Number: A30A39-316-200

A30A39-316-200 £11.71 - £14.64 Ex Vat

Avaibility: 10 in stock

SMA male to SMA male Coaxial Cable Assembly, 2metres, Low Loss-0

Quick view

200 series

SMA Plug to SMA Plug RF Cable Assembly 2m 200 Series

(0)

Part Number: A30A30-200-2000 , Cable Assembly SMA Plug to SMA Plug CLF200/LMR200 Low Loss 2M

A30A30-200-2000 £13.18 - £16.47 Ex Vat

Avaibility: 47 in stock (can be backordered)

RFShopUK-240 series cable assemblies

Quick view

Cable Assemblies

SMA Plug to SMA Plug RF Cable Assembly 10m 240 Series

(0)

Cable Assembly, SMA Plug to SMA Plug, 240 series,10m

Part Number: A30A30-240-10000

Connector 1: SMA Plug (Conventional Male)
Connector 2: SMA Plug (Conventional Male)
Cable Type: 240 series
Length: 10m

RFShopUK-SMA cable assemblies

A30A30-240-10000 £27.36 - £34.20 Ex Vat

Avaibility: 8 in stock

Quick view

200 series

SMA Plug to RP-TNC Plug RF Cable Assembly 3m 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to TNC RP Plug, 200 Series, 3M, A30T60-200-3000

SMA Plug (Conventional Male) to TNC RP Plug (Female Pin), 200 series Cable, 3M

Part Number: A30T60-200-3000

Cables available in any length. Please email: sales@rfshop.co.uk for prices and delivery times.

A30T60-200-3000 £13.80 - £17.25 Ex Vat

Avaibility: 8 in stock (can be backordered)

Quick view

200 series

SMA Plug to RP-TNC Plug RF Cable Assembly 10m 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to TNC RP Plug, 200 Series, 10M, A30T60-200-10000

SMA Plug (Conventional Male) to TNC RP Plug (Female Pin), 200 series Cable, 10M

Part Number: A30T60-200-10000

Cables available in any length. Please email: sales@rfshop.co.uk for prices and delivery times.

A30T60-200-10000 £22.82 - £28.52 Ex Vat

Avaibility: 10 in stock

Example Datasheet-SMA Plug

Quick view

200 series

SMA Plug to N Plug RF Cable Assembly 500mm 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to N Plug, 200 Series Cable, 0.5M, A30N30-200-500

Part Number: A30N30-200-500

SMA Plug (Conventional Male) to N Plug (Conventional Male), LMR200

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)

Example Datasheet-N Plug

Example Datasheet-200 Series Cable

A30N30-200-500 £11.46 - £14.33 Ex Vat

Avaibility: 8 in stock (can be backordered)

Quick view

200 series

SMA Plug to N Plug RF Cable Assembly 1m 200 Series

(0)

Cable Assembly, SMA Plug to N Plug, 200 series, 2M, A30N30-200-1000

Part Number: A30N30-200-1000

Connector 1: SMA Plug (Conventional Male)

Connector 2: N Plug (Conventional Male)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 1000mm

RFShopUK- Other A30N30 Assemblies

All Assemblies can be made to specific requirements, for a quote please contact us directly.

A30N30-200-1000 £12.10 - £15.13 Ex Vat

Avaibility: 5 in stock (can be backordered)

N30A30-195/200-5000, N conv male pin, male SMA, 195 Cable, Length = 5m, loss at 2.45GHz < 3.6dB-0

Quick view

200 series

SMA Plug to N Plug RF Cable Assembly 5m 200 Series

(0)

Part Number: A30N30-200-5000

SMA Plug (Conventional Male) to N Plug (Conventional Male) LMR200 Cable, 5M, A30N30-200-5000

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 5m

A30N30-200-5000 £17.26 - £21.57 Ex Vat

Avaibility: 6 in stock (can be backordered)

Quick view

200 series

N Jack to SMA Plug RF Cable Assembly 175mm 200 Series

(0)

Part Number: N80A30-200-175-1 , N jack, SMA plug, 200 Cable, Loss at 2.45 GHz < 1.1 dB, Length = 0.175m

N80A30-200-175 £11.28 - £14.10 Ex Vat

Avaibility: 45 in stock

N male to SMA male , RG142 cable, 1 metre N30A30-142-1000-0

Quick view

Cable Assemblies

SMA Plug to N Plug RF Cable Assembly 1m RG142

(0)

SMA Plug (Conventional Male) to N Plug (Conventional Male), RG142, 1M,

Part Number: A30N30-142-1000

A30N30-142-1000 £16.45 - £20.56 Ex Vat

Avaibility: 10 in stock

Quick view

240 series

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 10m 240 Series

(0)

Part Number: A60A95-240-10000

A60A95-240-10000 £28.80 - £36.00 Ex Vat

Avaibility: 10 in stock

RP SMA Extension Lead, 1.5m (ACC-10314-01 equivalent) A60A90-200-1500-0

Quick view

200 series

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 1.5m 200 Series

(0)

Part Number: A60A90-200-1500

A60A90-200-1500 £12.70 - £15.87 Ex Vat

Avaibility: 10 in stock

Quick view

Bulkhead

SMA Plug to SMA Jack RF Cable Assembly 500mm RG316 – Bulkhead

(0)

Part Number: A30A85-316-500

A30A85-316-500 £11.43 - £14.29 Ex Vat

Avaibility: 12 in stock

A30A30-142-700.JPG, SMA test Lead, RG142 Cable -0

Quick view

Cable Assemblies

SMA Plug to SMA Plug RF Test Cable Assembly 700mm RG142

(0)

Part Number: A30A30-142-700 , SMA male to SMA male test cable. VSWR PLOT

A30A30-142-700 £13.47 - £16.84 Ex Vat

Avaibility: 10 in stock

Quick view

0.141

SMA Plug to SMA Plug RF Cable Assembly 1m 0.141″ Semi-Rigid

(0)

Part Number: A30A30-141-100cm

A30A30-141-1000 £27.70 - £34.62 Ex Vat

Avaibility: 8 in stock

RFShopUK-Other UFL Assemblies

Quick view

Bulkhead

SMA Jack to U.FL Right Angle Plug RF Cable Assembly 50mm RG178 – Bulkhead

(0)

Cable Assembly, SMA Jack Bulkhead, to UFL Plug RA, RG178, 50mm

Part Number: A85UFL-178-50

A85- SMA Jack (Conventional Female), Bulkhead

UFL- Plug (conventional Male), Right Angle

Cable Type: RG178
Length: 50mm

A85UFL-178-50 £13.00 - £16.25 Ex Vat

Avaibility: 48 in stock

Quick view

Cable Assemblies

SMA Plug to MMCX Right Angle Plug RF Cable Assembly 1m RG316

(0)

Part Number: A30MMCX39-316-1000 , Connector 1: SMA Plug (Male pin)
Connector 2: Right Angle MMCX Plug (Male pin)
Cable Type: RG316
Length: 1000mm

A30MMCX39-316-1000 £12.38 - £15.47 Ex Vat

Avaibility: 9 in stock

Quick view

200 series

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 1m 200 Series

(0)

Part Number: A60A90-200-1000-1 , Connector 1: RP SMA Plug (Female pin)
Connector 2: RP SMA Jack (Male pin)
Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz
Length: 1m

A60A90-200-1000 £12.06 - £15.07 Ex Vat

Avaibility: 10 in stock

UFLA95-178-300, UFL, RP-SMA (male pin) jack, RG178 Cable, Length = 300mm-0

Quick view

Bulkhead

RP-SMA Jack to U.FL RF Cable Assembly 300mm RG178

(0)

Part Number: A95UFL-178-300

SMA Jack-Reverse Polarity (Male Pin), Bulkhead, to UFL, RG178, 300mm, A95UFL-178-300

A95UFL-178-300 £13.68 - £17.10 Ex Vat

Avaibility: 6 in stock

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 2m 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 2m A60N30-200-2000

Part Number: A60N30-200-2000 (Previously N30A60-200-2000)

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 2m
Loss: ~1.5dB @ 2.4GHz

A60N30-200-2000 £14.86 - £18.57 Ex Vat

Avaibility: 31 in stock

RPSMA plug to RPTNC jack , 30cm, A60T90-200-300-0

Quick view

200 series

RP-SMA Plug to RP-TNC Jack RF Cable Assembly 300mm 200 Series

(0)

Part Number: A60T90-200-300

A60T90-200-300 £10.44 - £13.05 Ex Vat

Avaibility: 10 in stock

Quick view

Bulkhead

SMA Plug to SMA Jack RF Cable Assembly 150mm RG316 – Bulkhead

(0)

Part Number: A30A85-316-150

A30A85-316-150 £11.43 - £14.29 Ex Vat

Avaibility: 15 in stock

Quick view

0.141

SMA Plug to SMA Plug RF Cable Assembly 0.5m 0.141″ Semi-Rigid

(0)

Part Number: A30A30-141T-50cm

A30A30-141-500 £24.24 - £30.30 Ex Vat

Avaibility: 9 in stock

Quick view

200 series

SMA Plug to N Jack RF Cable Assembly 700mm 200 Series LMR200

(0)

SMA Plug to N Jack LMR200, 0.7m, A30N80-200-700

Part Number: A30N80-200-700

SMA Plug (Conventional Male)

N Type Jack (Conventional Female)

200 Series Cable

700mm length.

A30N80-200-700 £12.57 - £15.71 Ex Vat

Avaibility: 25 in stock (can be backordered)

Quick view

200 series

SMA Plug to RP-TNC Plug RF Cable Assembly 1.5m 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to TNC RP Plug, 200 Series, 1.5M, A30T60-200-1500

SMA Plug (Conventional Male) to TNC RP Plug (Female Pin), 200 series Cable, 1.5M

Part Number: A30T60-200-1500

Cables available in any length. Please email: sales@rfshop.co.uk for prices and delivery times.

A30T60-200-1500 £11.87 - £14.84 Ex Vat

Avaibility: 5 in stock

RFShopUK: Other SMA Assemblies

Quick view

Cable Assemblies

SMA Plug to SMA Jack RF Cable Assembly 2m 195 Series – Bulkhead

(0)

Cable Assembly, SMA Plug to SMA Jack BH, 195 cable, 2M,

Part Number: A30A85-195-2000,

Connector 1: SMA Plug (Conventional Male),

Connector 2: SMA Jack (Conventional Female),

: Bulkhead,

Cable Type: 195 series,

Length: 2m,

A30A85-195-2000 £13.30 - £16.63 Ex Vat

Avaibility: 4 in stock

RFShopUK- Fakra-ZP-02

Quick view

Cable Assemblies

SMA Jack to Fakra Plug RF Cable Assembly 150mm RG58

(0)

Cable Assembly, SMA Jack to Fakra Plug , RG58, 150mm,

Part Number: A80Fakra30-58-150

Coaxial Cable Assembly,

1: SMA

Jack (Conventional Female/ Socket),

2: Fakra (Universal-Sea Blue) Water Blue,

Plug (SMB Plug Standard),

RG58 Cable,

150mm Length,

RFShopUK-CH-AJ-200

Bespoke Cable Assemblies available. Contact us directly for a free quote.

A80Fakra30-58-150 £11.30 - £14.12 Ex Vat

Avaibility: 5 in stock

RFShopUK-Other UFL Assemblies

Quick view

Cable Assemblies

SMA Jack to U.FL Right Angle Plug RF Cable Assembly 100mm RG178 – Bulkhead

(0)

Cable Assembly, SMA Jack Bulkhead, to UFL Plug RA, RG178, 100mm

Part Number: A85UFL-178-100

A85- SMA Jack (Conventional Female), Bulkhead

UFL- Plug (conventional Male), Right Angle

Cable Type: RG178
Length: 100mm

A85UFL-178-100 £13.00 - £16.25 Ex Vat

Avaibility: 2 in stock

Quick view

200 series

SMA Plug to RP-TNC Plug RF Cable Assembly 1m 200 Series

(0)

Coaxial Cable Assembly, SMA Plug to TNC RP Plug, 200 Series, 1M, A30T60-200-1000

SMA Plug (Conventional Male) to TNC RP Plug (Female Pin), 200 series Cable, 1M

Part Number: A30T60-200-1000

Cables available in any length. Please email: sales@rfshop.co.uk for prices and delivery times.

A30T60-200-1000 £11.22 - £14.03 Ex Vat

Avaibility: 5 in stock

Example Data Sheet-SMA Jack

Quick view

200 series

SMA Jack to N Jack RF Cable Assembly 500mm 200 Series

(0)

Coaxial Cable Assembly, SMA Jack to N Jack, LR200, 0.5M, A80N80-200-500

Part Number: A80N80-200-500

SMA Jack to N Jack, (Conventional Female), 200 Series Cable

Example Data Sheet-N Jack

RFShopUK-Other SMA Assemblies

RFShopUK-Other N Assemblies

A80N80-200-500 £12.26 - £15.33 Ex Vat

Avaibility: 50 in stock

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 750mm 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 0.75m A60N30-200-750

Part Number: A60N30-200-750 (Previously N30A60-200-750)

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)
Cable Type: Low Loss 200 Series 0.45dB per mtr at 2.5GHz (diameter ~5mm)
Length: 0.75m

A60N30-200-750 £13.25 - £16.56 Ex Vat

Avaibility: 10 in stock

N30A30-195/200-10000, N conv male pin, male SMA, 195 Cable, Length = 10m, loss at 2.45GHz < 7dB-0

Quick view

200 series

SMA Plug to N Plug RF Cable Assembly 10m 200 Series

(0)

Part Number: A30N30-200-10000 , Connector 1: N Plug (Male Pin)
Connector 2: SMA Plug (Male Pin)
Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 10m

N30A30-200-10000

A30N30-200-10000 £23.70 - £29.62 Ex Vat

Avaibility: 10 in stock (can be backordered)

A30FME80-195/200-2000, SMA conv male pin, FME (fem pin), 195 Cable, Length = 2m, loss at 2.45GHz < 1.8dB-0

Quick view

200 series

SMA Plug to FME Jack RF Cable Assembly 2m 200 Series

(0)

Part Number: A30FME80-200-2000 , SMA conv male pin, FME (fem pin), 200 Cable, Length = 2m, loss at 2.45GHz < 1.8dB

A30FME80-200-2000 £12.14 - £15.18 Ex Vat

Avaibility: 10 in stock

A30A60-195/200-2000, SMA conv male pin, RP-SMA (female pin), 195 Cable, Length = 2m, loss at 2.45GHz < 1.8dB-0

Quick view

200 series

SMA Plug to RP-SMA Plug RF Cable Assembly 2m 200 Series

(0)

Part Number: A30A60-200-2000 , SMA conv male pin, RP-SMA (female pin), 200 Cable, Length = 2m, loss at 2.45GHz < 1.8dB

A30A60-200-2000 £12.80 - £16.00 Ex Vat

Avaibility: 10 in stock

RFShopUK-Other RG174 Assemblies

Quick view

Cable Assemblies

SMA Plug to MMCX Right Angle Plug RF Cable Assembly 300mm RG174

(0)

Cable Assembly, SMA Plug to MMCX Plug RA, RG174, 0.3M

Part Number: A30MMCX39-174-300

Connector 1: SMA Plug (Male pin)
Connector 2: MMCX Plug (Male pin) Right Angled
Cable Type: RG174
Length: 300mm

A30MMCX39-174-300 £9.74 - £12.17 Ex Vat

Avaibility: Available on back-order

Quick view

240 series

RP-SMA Plug to SMA Jack RF Cable Assembly 10m 240 Series

(0)

Part Number: A60A85-240-10000 , Connector 1: RP SMA Plug (Female pin)
Connector 2: SMA Jack (Female pin) with Bulkhead
Cable Type: Low Loss 240 Series 0.45dB per mtr at 2.5GHz
Length: 10m

A60A85-240-10000 £29.55 - £36.94 Ex Vat

Avaibility: 10 in stock

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 1m 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 1m A60N30-200-1000

Part Number: A60N30-200-1000

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 1m
Loss: ~1.1dB @ 2.4GHz

A60N30-200-1000 £13.57 - £16.96 Ex Vat

Avaibility: 16 in stock

Quick view

195 series

RP-SMA Plug to N Plug RF Cable Assembly 1.5m 195 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 1.5m A60N30-200-1500

Part Number: A60N30-200-1500

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: Low Loss 195 Series 0.45dB per mtr at 2.5GHz (diameter ~5mm)
Length: 1.5m

A60N30-195-1500 £13.30 - £16.62 Ex Vat

Avaibility: 10 in stock

N Plug to RP SMA Plug, 195 series cable, 10m N30A60-240-10000-0

Quick view

240 series

RP-SMA Plug to N Plug RF Cable Assembly 750mm 240 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 240 series cable, 0.75m A60N30-240-750

Part Number: A60N30-240-750 (Previously N30A60-240-750)

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: Low Loss 240 Series 0.45dB per mtr at 2.5GHz (diameter ~5mm)
Length: 0.75m

A60N30-240-750 £13.24 - £16.55 Ex Vat

Avaibility: 10 in stock

Quick view

200 series

N Jack to SMA Plug RF Cable Assembly 350mm 200 Series

(0)

Part Number: N80A30-200-350-1 , N jack, SMA plug, 200 Cable, Loss at 2.45 GHz < 1.1 dB, Length = 0.35m

N80A30-200-350 £11.28 - £14.10 Ex Vat

Avaibility: 70 in stock

Quick view

Bulkhead

SMA Jack to SMA Jack RF Cable Assembly 1.5m RG316 – Bulkhead

(0)

Part Number: A85A85-316-1500-1 , Connector 1: Bulkhead SMA Jack (Female)
Connector 2: Bulkhead SMA Jack (Female)
Cable Type: RG316
Length: 1500mm

A85A85-316-1500 £12.34 - £15.42 Ex Vat

Avaibility: 35 in stock

N80T60-195-1500 , N fem to RP-TNC plug , 1.5m N80T60-200-1500-0

Quick view

200 series

N Jack to RP-SMA Jack RF Cable Assembly 700mm 200 Series

(0)

Part Number: N80A90-200-700-1 , N jack,RP-SMA jack, 200 Cable, Loss at 2.45 GHz < 1.1 dB, Length = 0.7m

N80A90-200-700 £12.08 - £15.10 Ex Vat

Avaibility: 43 in stock

Quick view

195 series

RP-SMA Plug to RP-SMA Jack RF Cable Assembly 1.5m 195 Series

(0)

Connector 1: RP SMA Plug (Female pin)
Connector 2: RP SMA Jack (Male pin)
Cable Type: low loss 195 series 0.6 dB per metre at 2.5GHz
Length: 1.5m

A60A90-195-1500 £12.70 - £15.87 Ex Vat

Avaibility: 10 in stock

Quick view

200 series

(0)

Part Number: UFLA85O-178-150 , Connector 1: U.FL
Connector 2: Bulkhead SMA Jack (Female Pin) with o-ring
Cable Type: RG178

Length: 150mm

UFLA85o-178-150 £13.04 - £16.30 Ex Vat

Avaibility: 2 in stock

UFLA85-178-300, UFL,SMA female pin BH, RG178 Cable, Length = 300mm-0

Quick view

Bulkhead

SMA Jack to U.FL RF Cable Assembly 300mm RG178

(0)

Part Number: A85UFL-178-300 , UFL,SMA female pin BH, RG178 Cable, Length = 300mm
Similar to 1699254
R-132G7210100CC

A85UFL-178-300 £13.04 - £16.30 Ex Vat

Avaibility: 140 in stock

Quick view

Bulkhead

SMA Jack to U.FL RF Cable Assembly 150mm RG178

(0)

Part Number: A85UFL-178-150

SMA Jack (Conventional Female), Bulkhead, to UFL, RG178, 150mm, A85UFL-178-150

Cable Type: RG178
Length: 150mm

A85UFL-178-150 £13.04 - £16.30 Ex Vat

Avaibility: 9 in stock

UFLA30-178-300, UFL,SMA male pin, RG178 Cable, Length = 300mm-0

Quick view

Bulkhead

SMA Plug to U.FL RF Cable Assembly 300mm RG178

(0)

Part Number: A30UFL-178-300 , UFL,SMA male pin, RG178 Cable, Length = 300mm
1699254
R-132G7210100CC

A30UFL-178-300 £12.35 - £15.44 Ex Vat

Avaibility: 11 in stock

Quick view

(0)

SMA Plug (Conventional Male) to N Jack (Conventional Female), Bulkhead, LMR200, 350mm,

Part Number: A30N85-200-350

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz
Length: 350mm

A30N85-200-350 £12.31 - £15.39 Ex Vat

Avaibility: 10 in stock

Quick view

240 series

RP-SMA Plug to N Plug RF Cable Assembly 10m 240 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 240 series cable, 10m A60N30-240-10000

Part Number: A60N30-240-10000 (Previously N30A60-240-10000)

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: Low Loss 240 Series 0.45dB per mtr at 2.5GHz (diameter ~5mm)
Length: 10m

A60N30-240-10000 £28.56 - £35.70 Ex Vat

Avaibility: 10 in stock

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 5m 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 5m A60N30-200-5000

Part Number: A60N30-200-5000

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 5m
Loss: ~3.3dB @ 2.4GHz

A60N30-200-5000 £18.72 - £23.40 Ex Vat

Avaibility: 15 in stock

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 3m 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 3m A60N30-200-3000

Part Number: A60N30-200-3000 (Previously N30A60-200-3000)

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 3m
Loss: ~2.2dB @ 2.4GHz

A60N30-200-3000 £16.14 - £20.18 Ex Vat

Avaibility: 48 in stock

Quick view

200 series

RP-SMA Plug to N Plug RF Cable Assembly 1.5m 200 Series

(0)

Cable Assembly, RP SMA Plug to N Plug, 200 series cable, 1.5m A60N30-200-1500

Part Number: A60N30-200-1500 (Previously N30A60-200-1500)

Connector 1: RP SMA Plug (Female Pin)

Connector 2: N Plug (Male Pin)

Cable Type: low loss 200 series 0.6 dB per metre at 2.5GHz (diameter ~5mm)
Length: 1.5m
Loss: ~1.1dB @ 2.4GHz

A60N30-200-1500 £14.22 - £17.77 Ex Vat

Avaibility: 10 in stock
